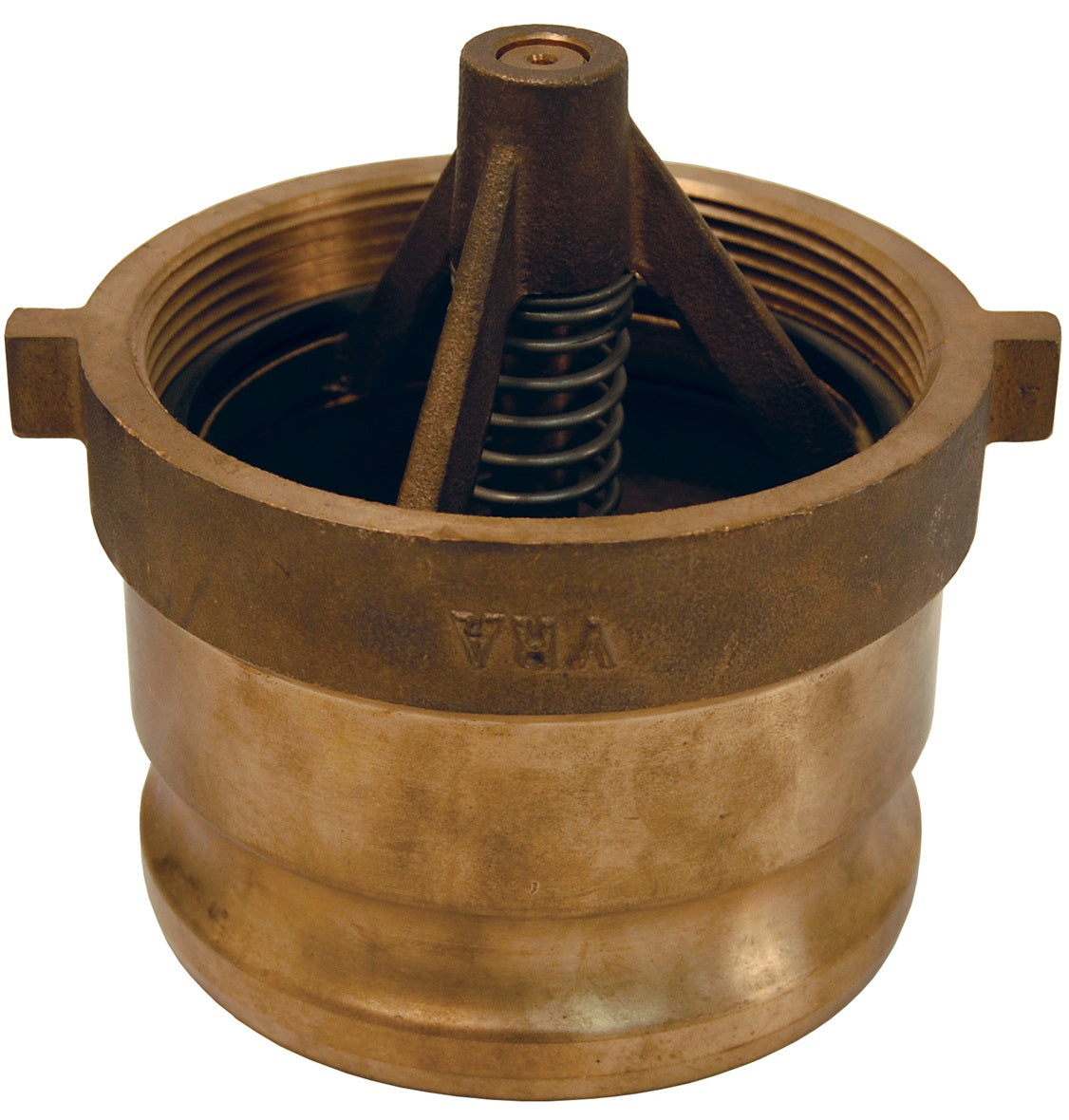

VR4086 by Dixon Valve | Vapor Recovery Tank Adapter | 4" Adapter Size x 4" Female NPT | Bronze

VR4086 by Dixon Valve | Vapor Recovery Tank Adapter | 4" Adapter Size x 4" Female NPT | Bronze

Sale price$403.33

Dixon Valve
Tank Truck | Vapor Recovery Tank Adapter

For use with dual point vapor elbows (VR6200 series)

When fuel is delivered to the fuel station, vapor recovery elbows are connected to the in-ground tank adapters. The vapor adapter is threaded to the in-ground tank vapor outlet connection.
Buy More, Save More!
Quantity Price Each
5–14 $379.13
15–29 $342.83
30+ $302.50
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Bayco
Shape:

Straight

Material(s):
  • Bronze
Features:
  • With outlet poppet valves to prevent fuel vapors from escaping. Poppet opens when vapor elbow is connected..
  • Low profile design.
  • Poppeted vapor collar at station vapor outlet.
Use:
  • Manufactured with 4" pipe threads to connect to in-ground fuel tanks and than provide an interface to connect the vapor recovery elbows.
  • Can be used as vapor valve on a fuel tanker (does not have mount for air interlock).
Part Number Adapter Size Female Thread Height Material
VR4086 4" 4" NPT 3-5/8" Bronze
VR4086-BY 4" 4" NPT 3-5/8" Zinc / Aluminum Alloy

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
