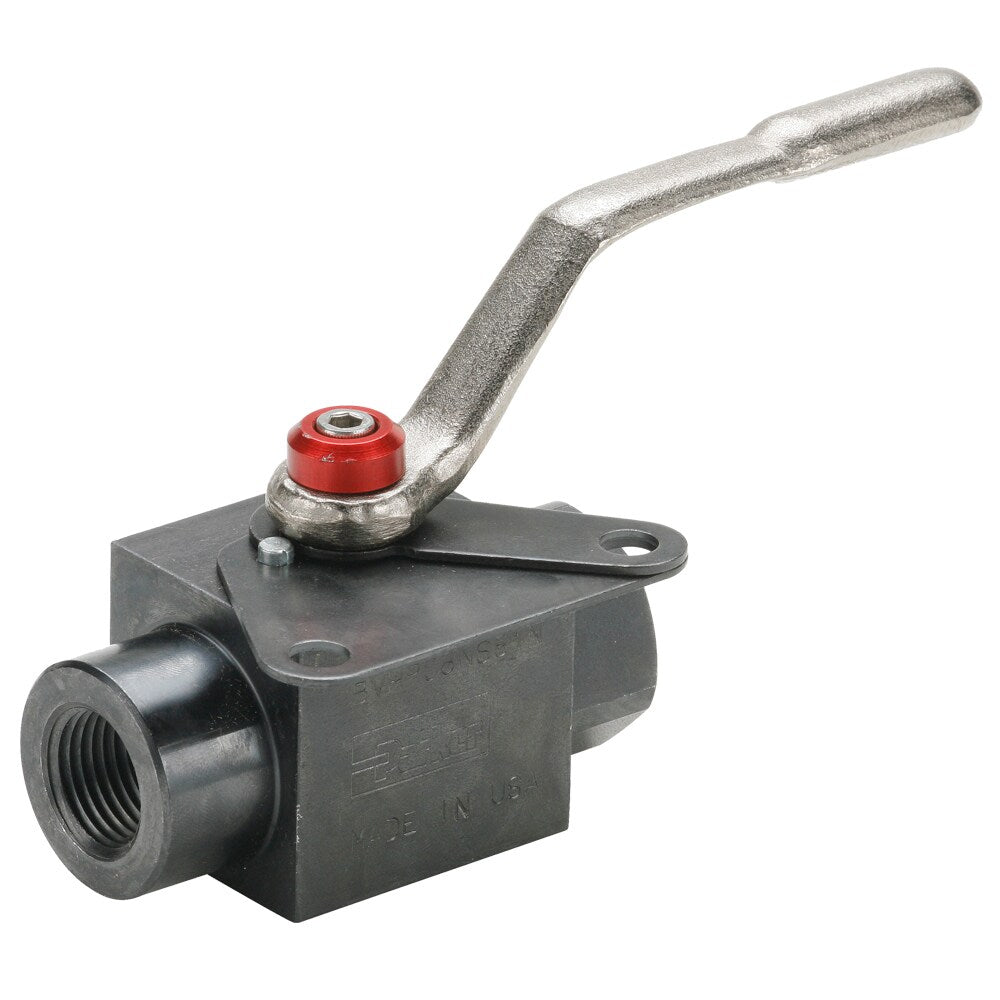

VP500HP-32 by Parker | Ball Valve | 2" Female NPT Thread | 14.80" Length | Straight | Carbon Steel
by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:6000 PSI Locking-Female-Female Pipe Ends VP500HP
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $637.10 |
| 15–29 | $576.10 |
| 30+ | $508.33 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Style: |
|
| Type: |
|
| Material: |
|
Specification: |
| Temperature Range: | -10° to +210° F (-23.3° to 98.8° C) |
| Pressure Range: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Pipe Thread (NPT) | B | C | H | L | M | N | Flow Diameter (D) |
| VP500HP-12 | 3/4"-14 | .66" | 2.24" | 6.73" | 2.44" | 3.75" | 4.94" | .790" |
| VP500HP-20 | 1-1/4"-11.5 | .79" | 3.38" | 12.05" | 3.15" | 4.72" | 6.99" | 1.26" |
| VP500HP-24 | 1-1/2"-11.5 | .89" | 4.06" | 12.05" | 3.35" | 5.12" | 7.66" | 1.50" |
| VP500HP-32 | 2"-11.5 | .78" | 4.79" | 12.05" | 3.94" | 5.50" | 8.21" | 1.89" |
*Locking plate ships separately in the box. Assembly is required.
