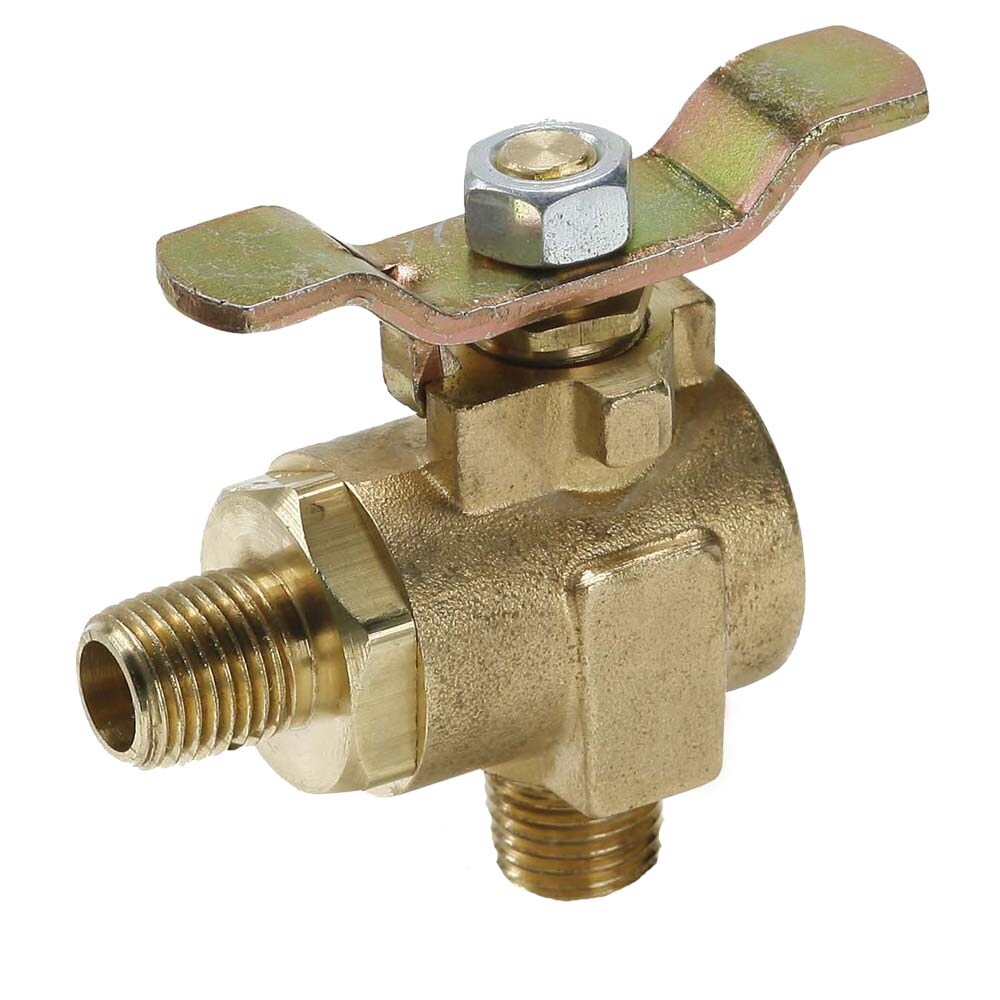

V591P-8 by Parker | Ball Valves | 1/2" Male Pipe Thread | 1-1/16" Hex | 2.67" Length | 90° Elbow | Brass

V591P-8 by Parker | Ball Valves | 1/2" Male Pipe Thread | 1-1/16" Hex | 2.67" Length | 90° Elbow | Brass

Sale price$39.77

by Parker Hannifin
Ball Valves Brass Series 590/591:90° Flow, Male-Male Pipe Ends V591P
Buy More, Save More!
Quantity Price Each
20–39 $37.38
40–79 $33.80
80+ $29.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • V591P Series
Shape:

90° Elbow

Material(s):
  • Brass
  • Chrome-Plated Brass
  • Steel
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
Type:
  • 590-Male/Female
  • 591-Male/Female
Material:
  • P-Brass
Options:
  • 04-Lever Handle
  • 08-Unmarked yellow vinyl handle cover
Specification:
Temperature Range: -50° to +350° F (-45.5° to +176.6° C)
Pressure Range:
  • 250 PSI (17.2 bar)
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
Part Number Straight Thread Hex H K L M N Flow Diameter (D)
V591P-4 1/4" 15/16" 1.25" 1.08" 2.50" 1.56" 2.42" .375"
V591P-6 3/8" 15/16" 1.25" 1.09" 2.50" 1.56" 2.43" .375"
V591P-8 1/2" 1-1/16" 1.25" 1.30" 2.50" 1.84" 2.67" .500"
