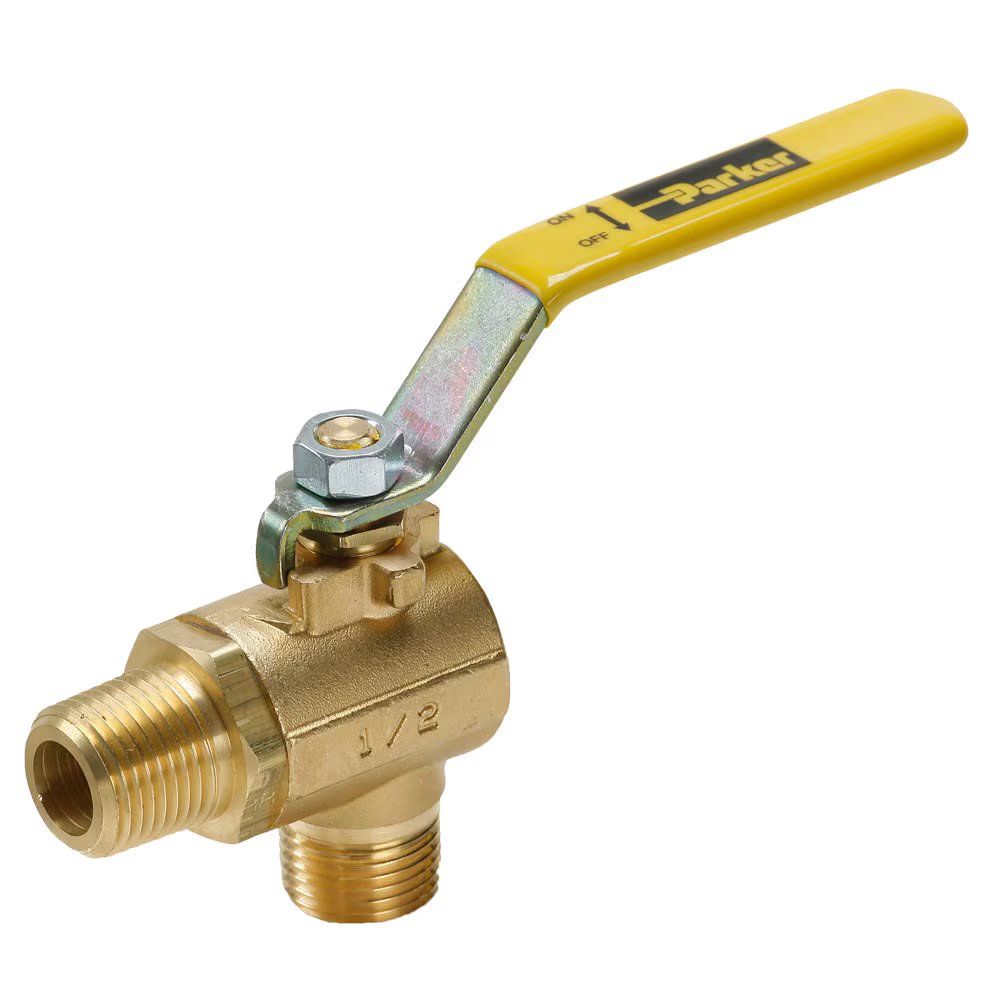

V591P-8-04 by Parker | Ball Valves | 1/2" Male Pipe Thread | 1-1/16" Hex | 5.64" Length | 90° Elbow | Brass

V591P-8-04 by Parker | Ball Valves | 1/2" Male Pipe Thread | 1-1/16" Hex | 5.64" Length | 90° Elbow | Brass

Sale price$42.72

by Parker Hannifin
Ball Valves Brass Series 590/591:Lever Handle, 90° Flow, Male-Male Pipe Ends V591P-X-04
Buy More, Save More!
Quantity Price Each
20–39 $40.16
40–79 $36.31
80+ $32.04
Discounts applied in cart/checkout.

Product Data:

Series:
  • V591P Series
Shape:

90° Elbow

Material(s):
  • Brass
  • Chrome-Plated Brass
  • Steel
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
Type:
  • 590-Male/Female
  • 591-Male/Female
Material:
  • P-Brass
Options:
  • 04-Lever Handle
  • 08-Unmarked yellow vinyl handle cover
Specification:
Temperature Range: -50° to +350° F (-45.5° to +176.6° C)
Pressure Range:
  • 250 PSI (17.2 bar)
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
Part Number Straight Thread Hex H K L M N Flow Diameter (D)
V591P-4-04 1/4" 15/16" 3.96" 1.08" 5.52" 1.56" 3.02" .375"
V591P-6-04 3/8" 15/16" 3.96" 1.09" 5.52" 1.56" 3.03" .375"
V591P-8-04 1/2" 1-1/16" 3.80" 1.30" 5.64" 1.84" 2.95" .500"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
