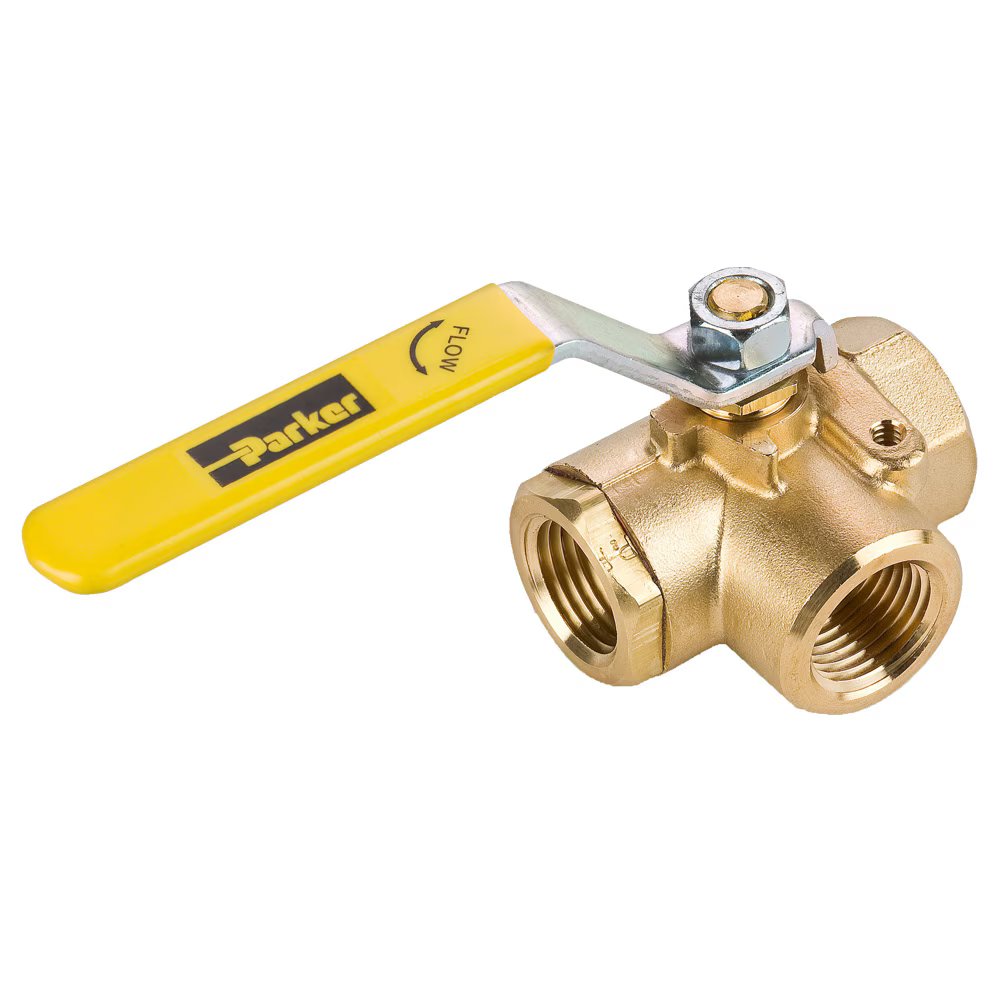

V533P-6 by Parker | Ball Valve | 3/8" Female PTF Pipe Thread | 15/16" Hex | 4.99" Length | Tee | Brass
by Parker Hannifin
Ball Valves Brass Series 533 3-Way Diversion / Series 540 4-Way:Female-Female-Female Pipe Ends V533P
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $89.45 |
| 30–59 | $80.89 |
| 60+ | $71.37 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Style: |
|
| Type: |
|
| Material: |
|
| Options: |
|
Specification: |
| Temperature Range: | -20° to +350° F (-6.6° to +176.6° C) |
| Pressure Range: |
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Straight Thread (PTF) | Hex (B) | E | F | G | H | K | L | M | N | Flow Diameter (D) |
| V533P-4 | 1/4" | 15/16" | .50" | 1.08" | 1.12" | 3.96" | 1.03" | 2.47" | 2.03" | 1.94" | .375" |
| V533P-6 | 3/8" | 15/16" | .50" | 1.08" | 1.12" | 3.96" | 1.03" | 2.47" | 2.03" | 1.94" | .375" |
| V533P-8 | 1/2" | 1-1/16" | .50" | 1.18" | 1.12" | 3.96" | 1.11" | 2.58" | 2.20" | 1.98" | .500" |
| V533P-12 | 3/4" | 1-1/4" | .87" | 1.43" | 1.37" | 3.96" | 1.42" | 2.90" | 2.83" | 2.17" | .685" |
| V533P-16 | 1" | 1-9/16" | .87" | 1.62" | 1.37" | 3.96" | 1.58" | 3.21" | 3.16" | 2.32" | .875" |
