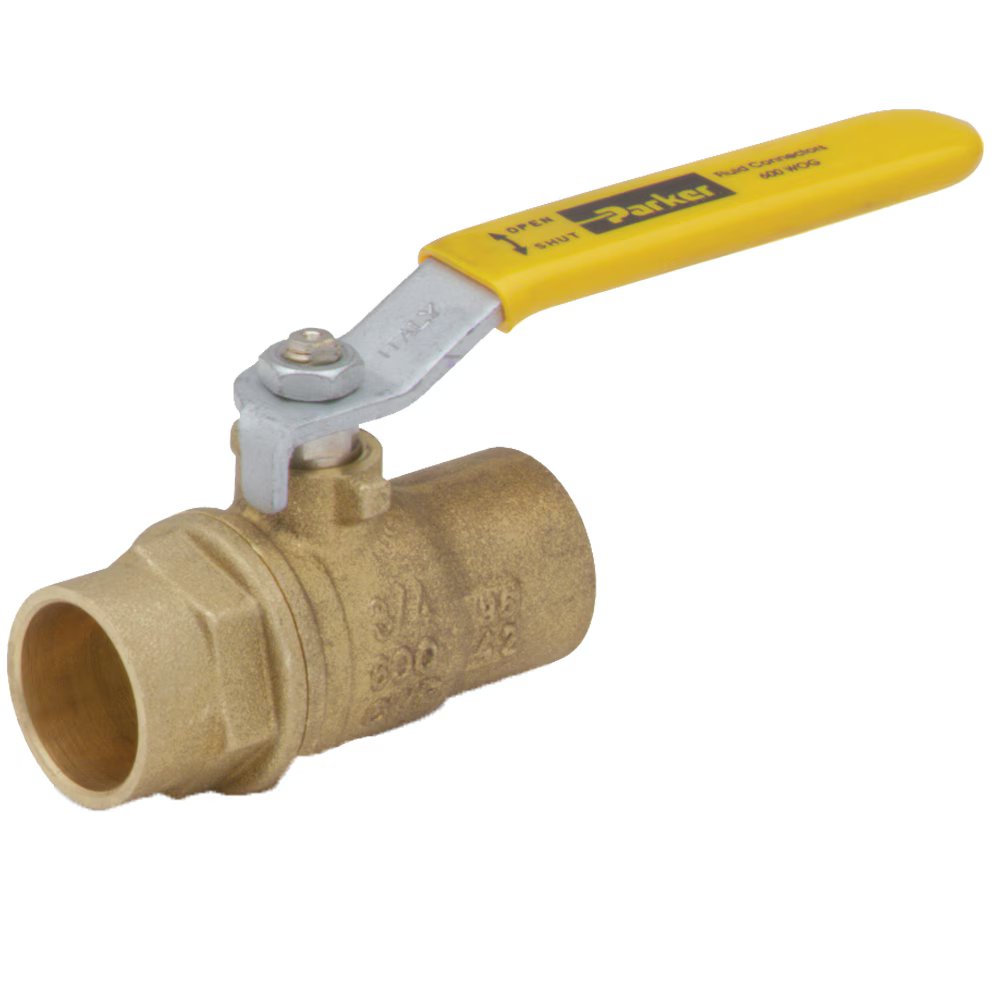

V509P-24 by Parker | Ball Valves | 1-1/2" Solder End | 8.46" Length | Straight | Brass | Pack of 6
by Parker Hannifin
Ball Valves Brass Series 509:Solder Cup Ends V509P
Package Quantity: 6 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $510.19 |
| 15–29 | $461.35 |
| 30+ | $407.07 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Style: |
|
| Type: |
|
| Material: |
|
Specification: |
| Temperature Range: | |
| Pressure Range: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | E | G | H | L | M | N | Flow Diameter (D) |
| V509P-8 | 1/2" | .630" | .49" | 3.94" | 5.00" | 2.24" | 1.69" | .55" |
| V509P-12 | 3/4" | .877" | .75" | 4.72" | 6.10" | 2.85" | 1.97" | .75" |
| V509P-16 | 1" | 1.128" | .90" | 4.72" | 6.40" | 3.35" | 2.13" | .94" |
| V509P-20 | 1-1/4" | 1.378" | .96" | 6.22" | 8.13" | 3.82" | 3.01" | 1.18" |
| V509P-24 | 1-1/2" | 1.628" | 1.10" | 6.22" | 8.46" | 4.49" | 3.25" | 1.50" |
| V509P-32 | 2" | 2.128" | 1.34" | 6.22" | 8.94" | 5.43" | 3.52" | 1.89" |
