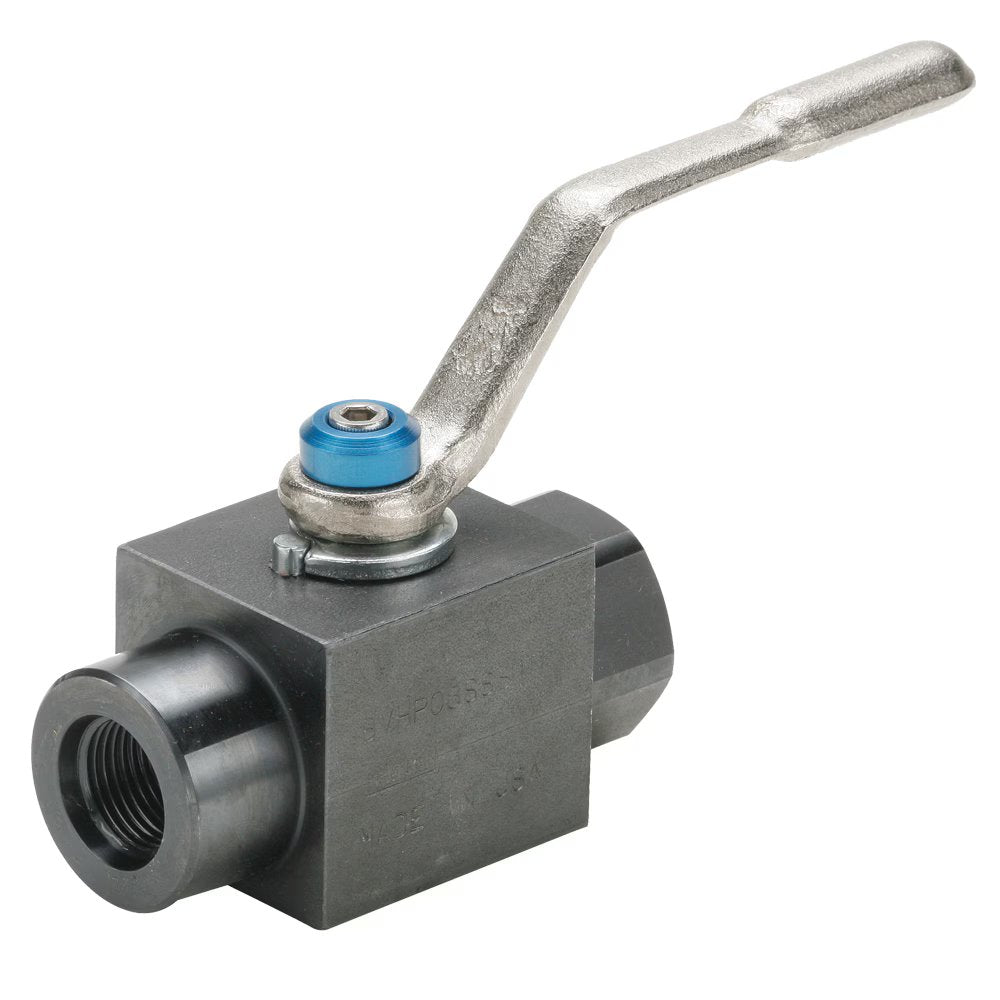

V506HP-32 by Parker | Ball Valve | 2-1/2" SAE J1926-1 Thread | 13.27" Length | Straight | Carbon Steel

V506HP-32 by Parker | Ball Valve | 2-1/2" SAE J1926-1 Thread | 13.27" Length | Straight | Carbon Steel

Sale price$580.23

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:6000 PSI Female-Female Straight Thread Ends V506HP
Buy More, Save More!
Quantity Price Each
5–14 $545.42
15–29 $493.20
30+ $435.17
Discounts applied in cart/checkout.

Product Data:

Series:
  • V506HP Series
Shape:

Straight

Ends Configuration:
  • 2-1/2in Female NPT
  • 2-1/2in Female NPT
  • Some Ends Match
Product Features:
  • Carbon Steel Phosphate Coated body
  • Steel ball
  • Delrin with Molybdenum Disulphide Seats
  • Nitrile O-rings Stem Seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 500-Female/Female NPT Ports
  • 506-Female/Female SAE Straight Thread Ports
Material:
  • HP-High Pressure Carbon Steel
Specification:
Temperature Range: -10° to +210° F (-23.3° to 98.8° C)
Pressure Range:
  • 6000 PSI (413.6 bar)* (*Dependent on size)
  • 7250 PSI (9.9 bar)* (*Dependent on size)
Part Number SAE J1926-1 Thread B C H L M N Flow Diameter (D)
V506HP-12 1-1/16"-12 UNF .66" 2.24" 6.73" 2.44" 3.75" 4.94" .790"
V506HP-20 1-5/8"-12 UNF .61" 3.38" 12.05" 3.15" 4.37" 6.99" 1.18"
V506HP-24 1-7/8"-12 UNF .89" 3.98" 12.05" 3.35" 5.12" 7.66" 1.50"
V506HP-32 2-1/2"-12 UNF .78" 4.61" 12.05" 3.94" 5.50" 8.21" 1.77"
