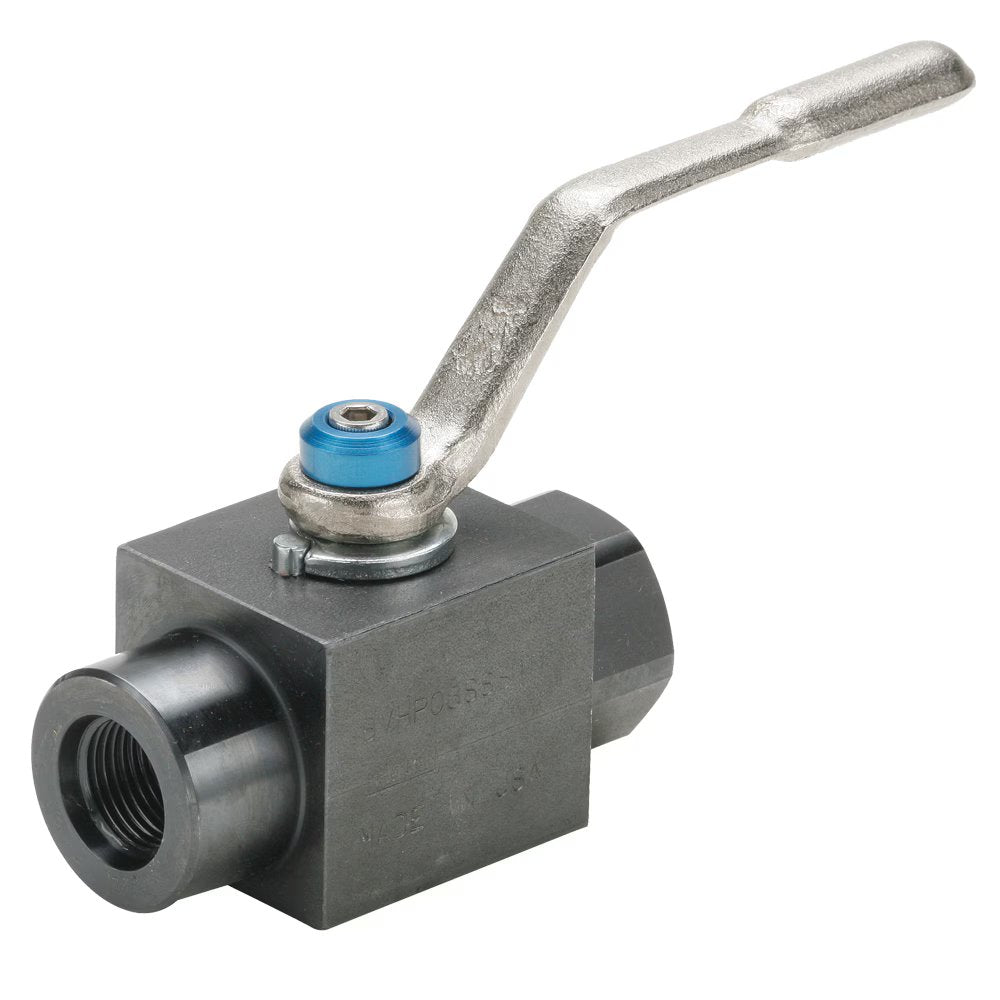

V506HP-16 by Parker | Ball Valve | 1-5/16" SAE J1926-1 Thread | 9.24" Length | Straight | Carbon Steel

V506HP-16 by Parker | Ball Valve | 1-5/16" SAE J1926-1 Thread | 9.24" Length | Straight | Carbon Steel

Sale price$198.90

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:7,250 PSI Female-Female Straight Thread Ends V506HP
Buy More, Save More!
Quantity Price Each
20–29 $186.97
30–59 $169.07
60+ $149.18
Discounts applied in cart/checkout.

Product Data:

Series:
  • V506HP Series
Shape:

Straight

Ends Configuration:
  • 1-5/16in Female NPT
  • 1-5/16in Female NPT
  • Some Ends Match
Product Features:
  • Carbon Steel Phosphate Coated body
  • Steel ball
  • Delrin with Molybdenum Disulphide Seats
  • Nitrile O-rings Stem Seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 500-Female/Female NPT Ports
  • 506-Female/Female SAE Straight Thread Ports
Material:
  • HP-High Pressure Carbon Steel
Specification:
Temperature Range: -10° to +210° F (-23.3° to 98.8° C)
Pressure Range:
  • 6000 PSI (413.6 bar)* (*Dependent on size)
  • 7250 PSI (9.9 bar)* (*Dependent on size)
Part Number SAE J1926-1 Thread B C H L M N Flow Diameter (D)
V506HP-4 7/16"-20 UNF .57" 1.30" 4.61" 1.57" 2.72" 3.22" .200"
V506HP-6 9/16"-18 UNF .57" 1.50" 4.61" 1.70" 2.83" 3.42" .390"
V506HP-8 3/4"-16 UNF .68" 1.57" 4.61" 1.89" 3.25" 3.50" .510"
V506HP-16 1-5/16"-12 UNF .66" 2.76" 6.73" 2.92" 4.75" 5.45" .790"
