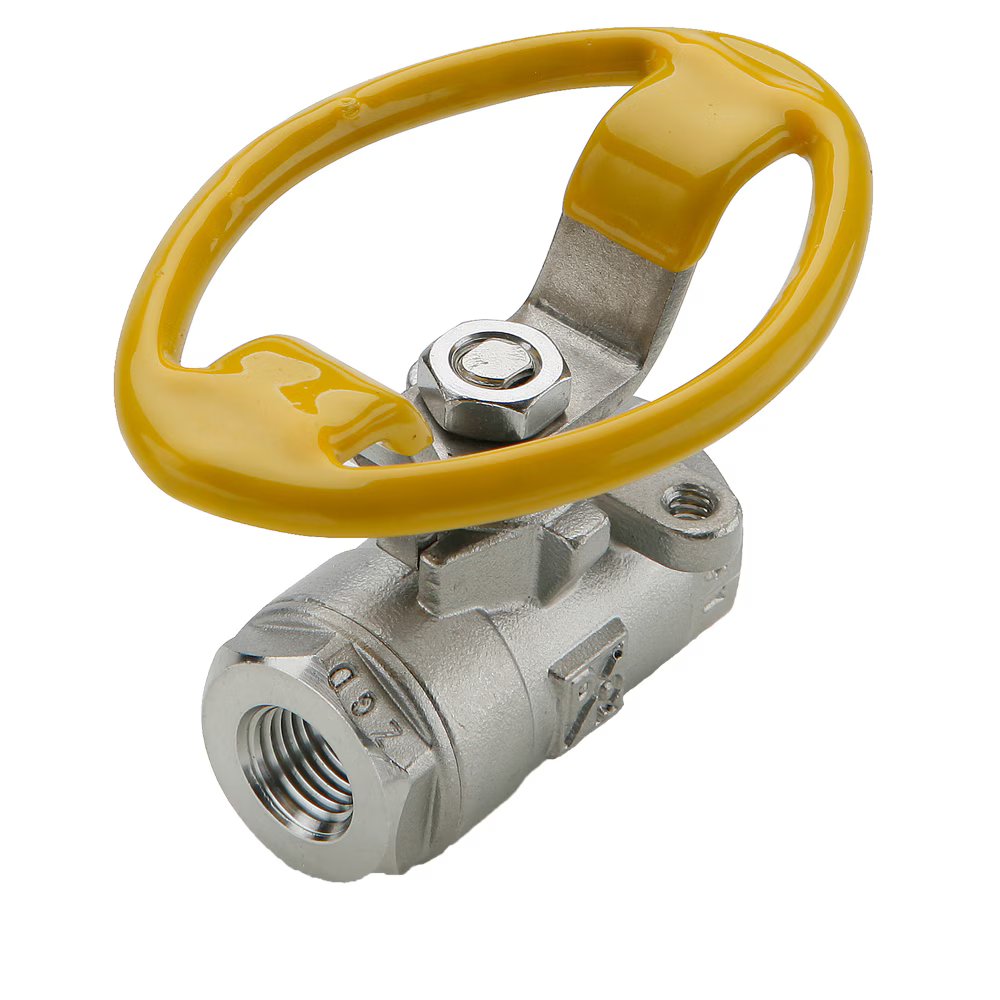

V502SS-6-21 by Parker | Ball Valve | 3/8" Female NPT Thread | 15/16" Hex (B/C) | 3.48" Length | Straight | Stainless Steel
by Parker Hannifin
Ball Valves Stainless Steel Series 502SS:Oval Handle, Female Pipe Ends, Panel Mount V502SS-X-21
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $101.37 |
| 30–59 | $91.66 |
| 60+ | $80.88 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Style: |
|
| Type: |
|
| Material: |
|
| Options: |
|
Specification: |
| Temperature Range: | 0° to +400° F (-17.7° to +204.4° C) |
| Pressure Range: |
|
| Approvals: | Meets material requirements of NACE MR-01-75 |
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Pipe Thread (NPT) | Hex (B / C) | G | H | L | Thread (I) | M | N | Flow Diameter (D) | Hole Diameter |
| V502SS-4-21 | 1/4" | 15/16" | 1.125" | 1.74" | 3.48" | 10-24 UNC | 2.07" | 2.43" | .380" | 1.125" |
| V502SS-6-21 | 3/8" | 15/16" | 1.125" | 1.74" | 3.48" | 10-24 UNC | 2.07" | 2.43" | .380" | 1.125" |
| V502SS-8-21 | 1/2" | 1-1/16" | 1.125" | 1.74" | 3.48" | 10-24 UNC | 2.27" | 2.54" | .500" | 1.125" |
| V502SS-12-21 | 3/4" | 1-3/8" | 1.375" | 2.68" | 5.36" | 10-24 UNC | 3.35" | 3.45" | .790" | 1.500" |
| V502SS-16-21 | 1" | 1-5/8" | 1.375" | 2.68" | 5.36" | 10-24 UNC | 3.54" | 3.74" | 1.000" | 1.500" |
