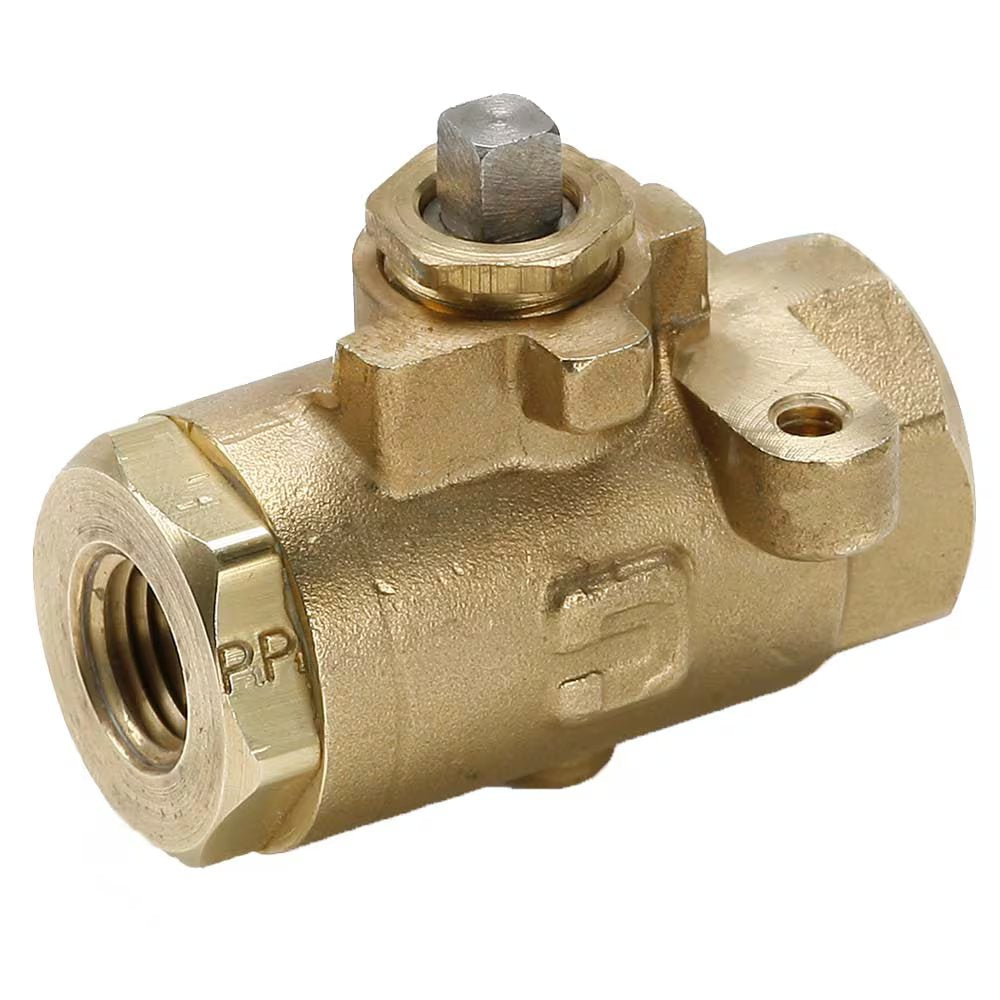

V502P-12-SUB by Parker | Rotary Actuator | 3/4" Size x 10-24 Female PNC Port | 1-5/16" Hex (H) | 1-1/4" Hex (I) | 2.42" Length | Straight | Brass | Pack of 10
by Parker Hannifin
Ball Valves Rotary Actuator Series Act:Actuator Sub-Assembly V502P-X-SUB
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $728.81 |
| 15–29 | $659.03 |
| 30+ | $581.50 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
Specification: |
|---|---|
| Temperature Range: | -40° to +180° F (-40° to +82.2° C) |
| Pressure Range: |
|
 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | A UNC | B | C | D | E | F | G | Hex (H) | Hex (I) | J | K |
| V502P-4-SUB | 1/4" | 10-24 | 1.68" | 1.15" | .495" | 2.03" | .50" | 1.12" | 15/16" | 15/16" | 1.06" | 1/4-18 PTF |
| V502P-6-SUB | 3/8" | 10-24 | 1.68" | 1.15" | .495" | 2.03" | .50" | 1.12" | 15/16" | 15/16" | 1.06" | 3/8-18 PTF |
| V502P-8-SUB | 1/2" | 10-24 | 1.78" | 1.19" | .565" | 2.20" | .50" | 1.12" | 1-1/16" | 1-1/16" | 1.19" | 1/2-14 PTF* |
| V502P-12-SUB | 3/4" | 10-24 | 2.09" | 1.40" | .655" | 2.42" | .87" | 1.37" | 1-5/16" | 1-1/4" | 1.38" | 3/4-14 PTF** |
| V502P-16-SUB | 1" | 10-24 | 2.38" | 1.54" | .785" | 2.75" | .87" | 1.37" | 1-9/16" | 1-1/2" | 1.67" | 1-11.5 PTF** |
*PTF Special Short. **PTF Special Extra Short
