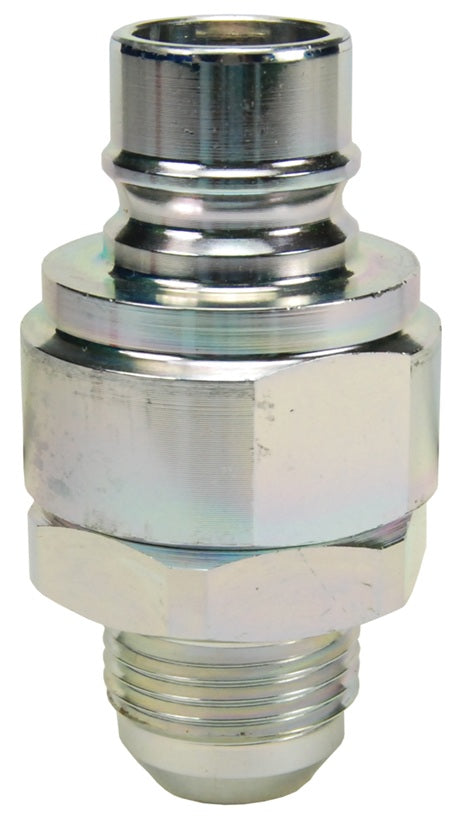

V3JM3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | 3/8" Male JIC x 3/8" MIL-C-51234 Valved | Plug | Steel
V3JM3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | 3/8" Male JIC x 3/8" MIL-C-51234 Valved | Plug | Steel

V3JM3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | 3/8" Male JIC x 3/8" MIL-C-51234 Valved | Plug | Steel

Sale price$36.39

Dixon Valve & Coupling

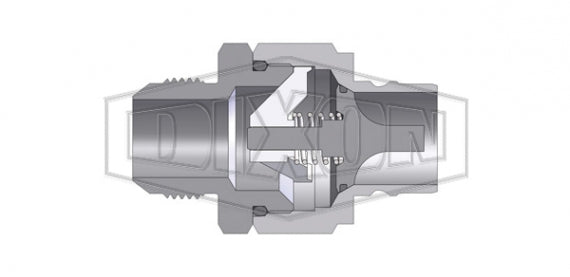

Hydraulic Coupling: V-Series MIL-C-51234 Valved Plug (JIC Male Threads)

General purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications.
Buy More, Save More!
Quantity Price Each
10–39 $34.21
40–79 $30.93
80+ $27.29
Discounts applied in cart/checkout.

Product Data:

Series:
  • V-Series
Shape:

Straight

Ends Configuration:
  • 3/8in Male V-Series QD Interchange
  • 3/8in Male JIC
Compatibility & Interchange:
  • Interchangeable to MIL-C-51234
  • Interchangeable with Snap-Tite H/IH Series and Faster TNV
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
Additional Information:
Rated Pressure Chart | V-Series MIL-C-51234 (Valved Connected)
Body
Size		 Steel Coupler/Plug Brass Coupler/Plug 316 Stainless Coupler/Plug
Maximum Working Burst Maximum Working Burst Maximum Working Burst
1/4" 6,500 PSI 450 bar 12,700 PSI 876 bar 2,250 PSI 150 bar 5,000 PSI 345 bar 5,000 PSI 345 bar 10,000 PSI 700 bar
3/8" 4,500 PSI 310 bar 10,500 PSI 700 bar 2,250 PSI 150 bar 5,300 PSI 350 bar 4,000 PSI 275 bar 8,000 PSI 550 bar
1/2" 4,000 PSI 275 bar 9,600 PSI 650 bar 2,000 PSI 130 bar 5,700 PSI 390 bar 3,750 PSI 260 bar 7,500 PSI 500 bar
3/4" 3,500 PSI 240 bar 9,100 PSI 600 bar 2,000 PSI 130 bar 5,300 PSI 350 bar 2,000 PSI 130 bar 7,500 PSI 500 bar
1" 2,000 PSI 130 bar 9,500 PSI 650 bar 1,750 PSI 120 bar 5,000 PSI 345 bar 2,000 PSI 130 bar 5,000 PSI 345 bar
1-1/4" 1,750 PSI 120 bar 5,000 PSI 345 bar 350 PSI 24 bar 1,000 PSI 70 bar 1,500 PSI 100 bar 3,000 PSI 200 bar
1-1/2" 1,500 PSI 100 bar 5,000 PSI 345 bar 350 PSI 24 bar 1,200 PSI 80 bar 1,500 PSI 100 bar 3,000 PSI 200 bar
2" 1,500 PSI 100 bar 4,000 PSI 275 bar 400 PSI 28 bar 1,000 PSI 70 bar 500 PSI 34 bar 1,000 PSI 70 bar

Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation.

V-Series | MIL-C-51234 Valved Plug (JIC Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
V2JM2 Plug/Male 1/4" 7/16" - 20 Male JIC Steel 2.06"
(52.3mm)		 0.97"
(24.6mm)		 7/8"
V3JM3 Plug/Male 3/8" 9/16" - 18 Male JIC Steel 2.25"
(57.2mm)		 1.1"
(27.9mm)		 1"
V4JM4 Plug/Male 1/2" 3/4" - 16 Male JIC Steel 2.40"
(61.0mm)		 1.31"
(33.3mm)		 1-3/16"
V6JM6 Plug/Male 3/4" 1-1/16" - 12 Male JIC Steel 2.91"
(73.9mm)		 1.65"
(41.9mm)		 1-1/2"
V8JM8 Plug/Male 1" 1-5/16" - 12 Male JIC Steel 3.22"
(81.8mm)		 2.06"
(52.3mm)		 1-7/8"
V10JM10 Plug/Male 1-1/4" 1-5/8" - 12 Male JIC Steel 3.46"
(87.9mm)		 2.19"
(55.6mm)		 2"
V-Series | MIL-C-51234 Valved Coupler (JIC Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
2VJM2 Socket/Female 1/4" 7/16" - 20 Male JIC Steel 2.12"
(53.8mm)		 0.99"
(25.1mm)		 7/8"
3VJM3 Socket/Female 3/8" 9/16" - 18 Male JIC Steel 2.32"
(58.9mm)		 1.18"
(30.0mm)		 1"
4VJM4 Socket/Female 1/2" 3/4" - 16 Male JIC Steel 2.54"
(64.5mm)		 1.36"
(34.5mm)		 1-3/16"
6VJM6 Socket/Female 3/4" 1-1/16" - 12 Male JIC Steel 3.07"
(78.0mm)		 1.67"
(42.4mm)		 1-1/2"
8VJM8 Socket/Female 1" 1-5/16" - 12 Male JIC Steel 3.32"
(84.3mm)		 2.06"
(52.3mm)		 1-7/8"
10VJM10 Socket/Female 1-1/4" 1-5/8" - 12 Male JIC Steel 3.59"
(91.2mm)		 2.19"
(55.6mm)		 2"
