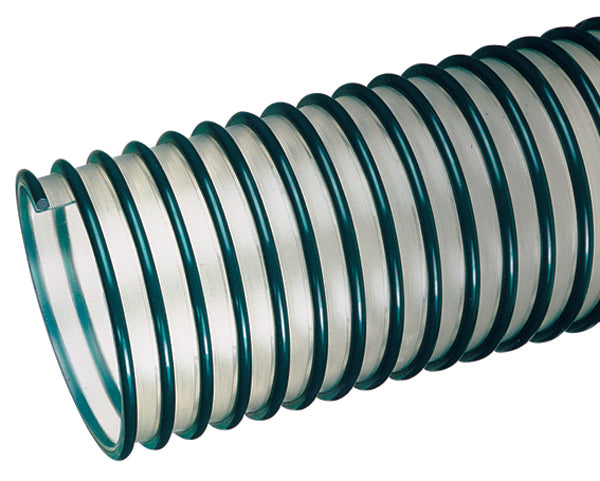

UV1-800X50 Tigerflex™ by Kuriyama | Urevac™ 1 | UV1™ Series | Polyurethane Ducting / Material Handling Hose | 8" ID | 8.59" OD | 50ft Length
Kuriyama

UV1-800X50 Tigerflex™ by Kuriyama | Urevac™ 1 | UV1™ Series | Polyurethane Ducting / Material Handling Hose | 8" ID | 8.59" OD | 50ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

General Applications:
  • Concrete resurfacing dust collection
  • Ducting, ventilation and fume removal
  • Dust collection
  • Insulation blowing
  • Material chutes
  • Material handling - standard duty
Construction:
  • Ester polyurethane (TPU) tube with rigid PVC helix.
Specifications:
  • Phthalate Free
  • RoHS
Service Temperature Range:
  • -40°F (-40°C) to +150°F (+65°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Durable Lightweight Polyurethane Tube - Designed for dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • "Cold-Flex" Materials - Hose remains flexible in subzero temperatures.
  • Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.
  • Grounding Wire (UVE only) - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Phthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
UV1™ Series
Part Number
50ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F in (lbs/ft)
UV1-150X50 1-1/2" 38.1mm 1.82" 46.2mm 20 PSI 7 PSI 22 in Hg 14 in Hg 0.75" 0.23 lbs/ft
UV1-200X50 2" 50.8mm 2.39" 60.7mm 15 PSI 6 PSI 21 in Hg 12 in Hg 1.5" 0.32 lbs/ft
UV1-250X50 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19 in Hg 10 in Hg 1.5" 0.39 lbs/ft
UV1-300X50 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in Hg 10 in Hg 2.5" 0.58 lbs/ft
UV1-400X50 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in Hg 8 in Hg 3" 0.77 lbs/ft
UV1-500X50 5" 127.0mm 5.50" 139.7mm 7 PSI 3 PSI 10 in Hg 7 in Hg 4" 0.89 lbs/ft
UV1-600X50 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in Hg 5 in Hg 5" 1.15 lbs/ft
UV1-800X50 8" 203.2mm 8.59" 218.2mm 4 PSI 2 PSI 5 in Hg 3 in Hg 7" 1.75 lbs/ft
UVE™ Series | with Grounding Wire
Part Number
50ft Length		 Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F in (lbs/ft)
UVE-200X50 UV1-200X100 2" 50.8mm 2.39" 60.7mm 15 PSI 6 PSI 21 in Hg 12 in Hg 1.5" 0.32 lbs/ft
UVE-300X50 UVE-300X100 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in Hg 10 in Hg 2.5" 0.58 lbs/ft
UVE-400X50 UVE-400X100 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in Hg 8 in Hg 3" 0.77 lbs/ft
UVE-600X50 UVE-600X100 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in Hg 5 in Hg 5" 1.15 lbs/ft
