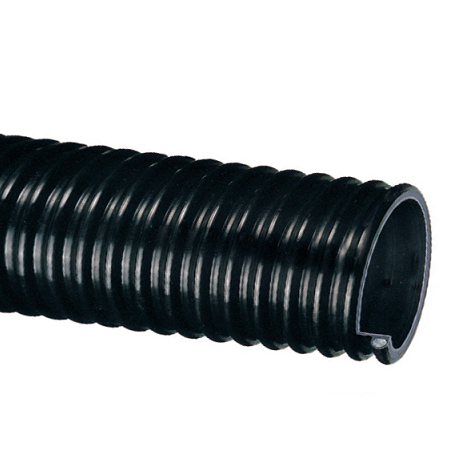

UF1-500X100 Tigerflex by Kuriyama | UF1 Series | Ureflex Heavy Duty Lined Material Handling Hose | 5" ID | Polyurethane | 100ft Length
Kuriyama

UF1-500X100 Tigerflex by Kuriyama | UF1 Series | Ureflex Heavy Duty Lined Material Handling Hose | 5" ID | Polyurethane | 100ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Agricultural dry fertilizers, Air seeder lines, Fly ash collection, Industrial vacuum equipment, Material chutes, Material handling - heavy duty abrasive, Milling machine scrap recovery, Shot blast recovery, Rock, gravel, sand and crushed concrete vacuuming SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Thick Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
3
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UF1-125X100 1-1/4" 31.8mm 1.53" 39.0mm 50 PSI 25 PSI Full 28 in. Hg 2" 100ft 0.22 lbs
UF1-150X100 1-1/2" 38.1mm 1.85" 47.0mm 50 PSI 25 PSI Full 28 in. Hg 2" 100ft 0.42 lbs
UF1-150X50 1-1/2" 38.1mm 1.85" 47.0mm 50 PSI 25 PSI Full 28 in. Hg 2" 50ft 0.42 lbs
UF1-200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 100ft 0.59 lbs
UF1-200X50 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 50ft 0.59 lbs
UF1-250X100 2-1/2" 63.5mm 3.07" 78.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 100ft 0.80 lbs
UF1-250X50 2-1/2" 63.5mm 3.07" 78.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 50ft 0.80 lbs
UF1-300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI Full 28 in. Hg 4" 100ft 1.18 lbs
UF1-300X50 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI Full 28 in. Hg 4" 50ft 1.18 lbs
UF1-350X100 3-1/2" 88.9mm 4.21" 107.0mm 35 PSI 18 PSI Full 28 in. Hg 5" 100ft 1.48 lbs
UF1-350X50 3-1/2" 88.9mm 4.21" 107.0mm 35 PSI 18 PSI Full 28 in. Hg 5" 50ft 1.48 lbs
UF1-400X100 4" 101.6mm 4.76" 120.9mm 35 PSI 18 PSI Full 28 in. Hg 6" 100ft 1.95 lbs
UF1-400X50 4" 101.6mm 4.76" 120.9mm 35 PSI 18 PSI Full 28 in. Hg 6" 50ft 1.95 lbs
UF1-500X100 5" 127.0mm 5.75" 146.0mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 10" 100ft 2.42 lbs
UF1-500X50 5" 127.0mm 5.75" 146.0mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 10" 50ft 2.42 lbs
UF1-600X100 6" 152.4mm 6.81" 173.0mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 12" 100ft 3.50 lbs
UF1-600X50 6" 152.4mm 6.81" 173.0mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 12" 50ft 3.50 lbs
UF1-800X50 8" 203.2mm 9.18" 233.2mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 18" 50ft 5.91 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
