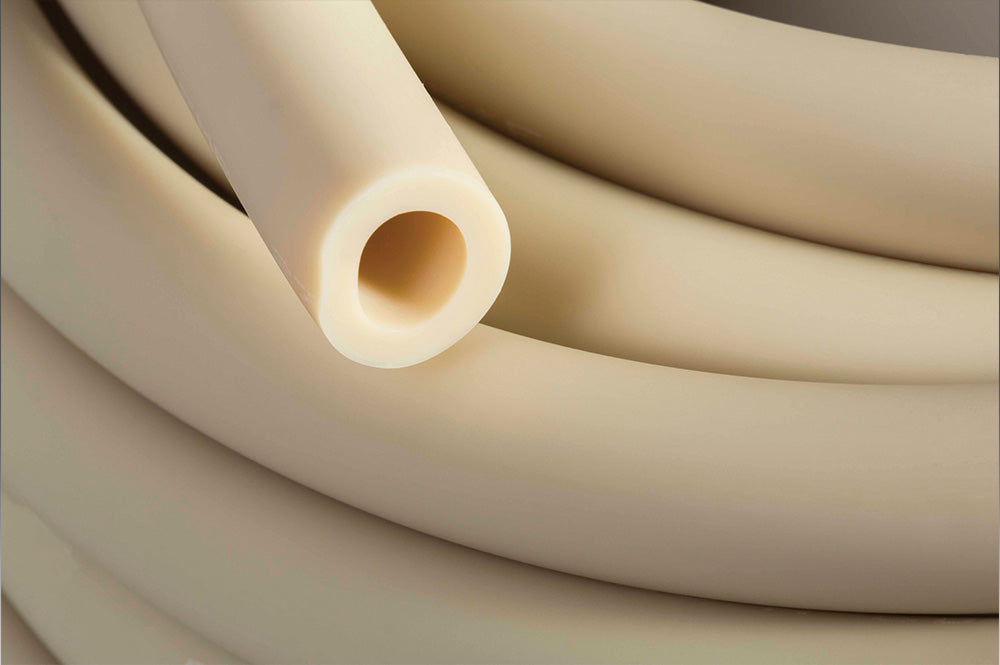

AZT00046 Tygon® by Saint Gobain | 5/8" ID x 7/8" OD x 1/8" Wall | A-60-C Cleaning Chemical Dispensing Tubing | 50' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Clean-in-place and steam-in-place cleaning and sterilization systems. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Tygon® A-60-C |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | Temperature resistant from -75°F to 275°F (-59° C to 135° C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Literature: | Tygon® A-60-C Cleaning Chemical Dispensing Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure* |
Vaccum Pressure Rating |
Length | ||
|---|---|---|---|---|---|---|---|---|---|
| at 73°F (PSI) | at 180°F (PSI) | at 73°F (PSI) | at 180°F (PSI) | ||||||
| AZT00003 | 1/16" | 3/16" | 1/16" | 1/4" | 34 PSI | 21 PSI | 29.9 inHg | 29.9 inHg | 50ft |
| AZT00007 | 1/8" | 1/4" | 1/16" | 1/2" | 19 PSI | 12 PSI | 29.9 inHg | 29.9 inHg | 50ft |
| AZT00012 | 3/16" | 5/16" | 1/16" | 3/4" | 13 PSI | 8 PSI | 29.9 inHg | 23.0 inHg | 50ft |
| AZT00017 | 1/4" | 3/8" | 1/16" | 1-1/4" | 10 PSI | 6 PSI | 26.0 inHg | 13.0 inHg | 50ft |
| AZT00019 | 1/4" | 1/2" | 1/8" | 3/4" | 19 PSI | 12 PSI | 29.9 inHg | 29.9 inHg | 50ft |
| AZT00022 | 5/16" | 7/16" | 1/16" | 1-1/2" | 8 PSI | 5 PSI | 17.0 inHg | 8.0 inHg | 50ft |
| AZT00027 | 3/8" | 1/2" | 1/16" | 2-1/4" | 7 PSI | 4 PSI | 11.0 inHg | 5.0 inHg | 50ft |
| AZT00029 | 3/8" | 5/8" | 1/8" | 1-1/4" | 13 PSI | 8 PSI | 29.9 inHg | 23.0 inHg | 50ft |
| AZT00038 | 1/2" | 3/4" | 1/8" | 2" | 10 PSI | 6 PSI | 26.0 inHg | 13.0 inHg | 50ft |
| AZT00046 | 5/8" | 7/8" | 1/8" | 3-1/4" | 8 PSI | 5 PSI | 17.0 inHg | 8.0 inHg | 50ft |
| AZT00053 | 3/4" | 1" | 1/8" | 4" | 7 PSI | 4 PSI | 11.0 inHg | 5.0 inHg | 50ft |
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
