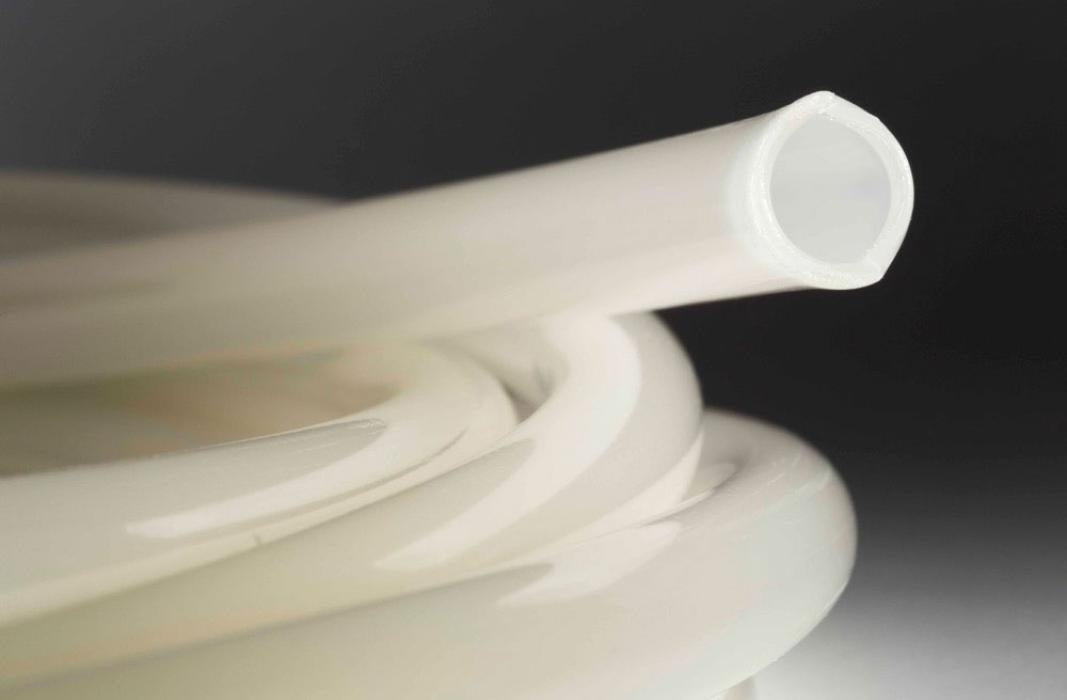

TSPVF8-0750-062-50 Versilon™ by Saint Gobain | PVDF | Flexible Fluoropolymer Chemical Transfer Tubing | 5/8" ID x 3/4" OD x .062" Wall | 50' Package Length
Saint Gobain
Versilon® PVDF | Flexible Fluoropolymer Chemical Transfer Tubing
Versilon® PVDF copolymer tubing offers the chemical resistance of fluoropolymer tubing with added flexibility not found in standard PVDF.
Ideal for use in the semiconductor industry, pulp and paper industry, ink transfer/processing and nuclear waste processing.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $616.49 |
| 15–29 | $557.46 |
| 30+ | $524.67 |
Versilon® PVDF | Flexible Fluoropolymer Chemical Transfer Tubing
Produced from Kynar® Flex resin, a co-polymer material, Versilon® PVDF chemical transfer tubing from Saint-Gobain offers the stable characteristics of fluoropolymer tubing. In addition, it has abrasion resistance, mechanical strength, and inherent high purity. This flexible tubing also offers chemical compatibility in higher pH solutions, increased impact strength and better clarity than standard PVDF. These features make it ideal for use in the semiconductor industry, pulp and paper industry, ink transfer/processing and nuclear waste processing.
1
What is this product used for?
- Chemical processing
- Food processing
- Nuclear waste processing
- Photovoltaic
- Pulp and paper
- Semiconductor
- Water transfer and purification
2
What are the key specifications?
Kynar® Flex resin, a co-polymer material
N/A
None
Clear
Opaque
250°F (121°C)
Material compliant with 21 CFR Sec. 177.2600 (c)(4)(i)
Not intended as an implant material!
3
What are the main product features?
- High purity/low extractables.
- Abrasion resistance.
- Excellent chemical resistance.
- UV and radiation resistance.
- Mechanical strength and toughness.
- Low permeability.
4
Which sizes or configurations are available?
| Part Number 50ft Lengths |
Part Number 100ft Lengths |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
|---|---|---|---|---|
| TSPVF8-0125-031-50 | TSPVF8-0125-031.10 | 1/16" | 1/8" | 0.031" (1/32") |
| TSPVF8-0187-031-50 | TSPVF8-0187-031.10 | 1/8" | 3/16" | 0.031" (1/32") |
| TSPVF8-0250-040-50 | TSPVF8-0250-040.10 | 8/47" (.170") | 1/4" | 0.040" (1/25") |
| TSPVF8-0250-062-50 | TSPVF8-0250-062.10 | 1/8" | 1/4" | 0.062" (1/16") |
| TSPVF8-0312-062-50 | TSPVF8-0312-062.10 | 3/16" | 5/16" | 0.062" (1/16") |
| TSPVF8-0375-031-50 | TSPVF8-0375-031.10 | 5/16" | 3/8" | 0.031" (1/32") |
| TSPVF8-0375-062-50 | TSPVF8-0375-062.10 | 1/4" | 3/8" | 0.062" (1/16") |
| TSPVF8-0437-062-50 | TSPVF8-0437-062.10 | 5/16" | 7/16" | 0.062" (1/16") |
| TSPVF8-0500-062-50 | TSPVF8-0500-062.10 | 3/8" | 1/2" | 0.062" (1/16") |
| TSPVF8-0625-062-50 | TSPVF8-0625-062.10 | 1/2" | 5/8" | 0.062" (1/16") |
| TSPVF8-0750-062-50 | TSPVF8-0750-062.10 | 5/8" | 3/4" | 0.062" (1/16") |
| TSPVF8-0875-062-50 | TSPVF8-0875-062.10 | 3/4" | 7/8" | 0.062" (1/16") |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® PTFE-F Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
