TSPK38-0125-031 Versilon™ by Saint Gobain | PEEK® Capillary Tubing | 0.062" ID x 0.125" OD x .032" Wall | 250' Package Length
Saint Gobain
Versilon® PEEK | Capillary Tubing
Versilon® PEEK flexible, capillary tubing is designed specifically for the demands of high-pressure chromatography (HPLC).
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,412.66 |
| 4–9 | $2,309.99 |
| 10+ | $2,053.33 |

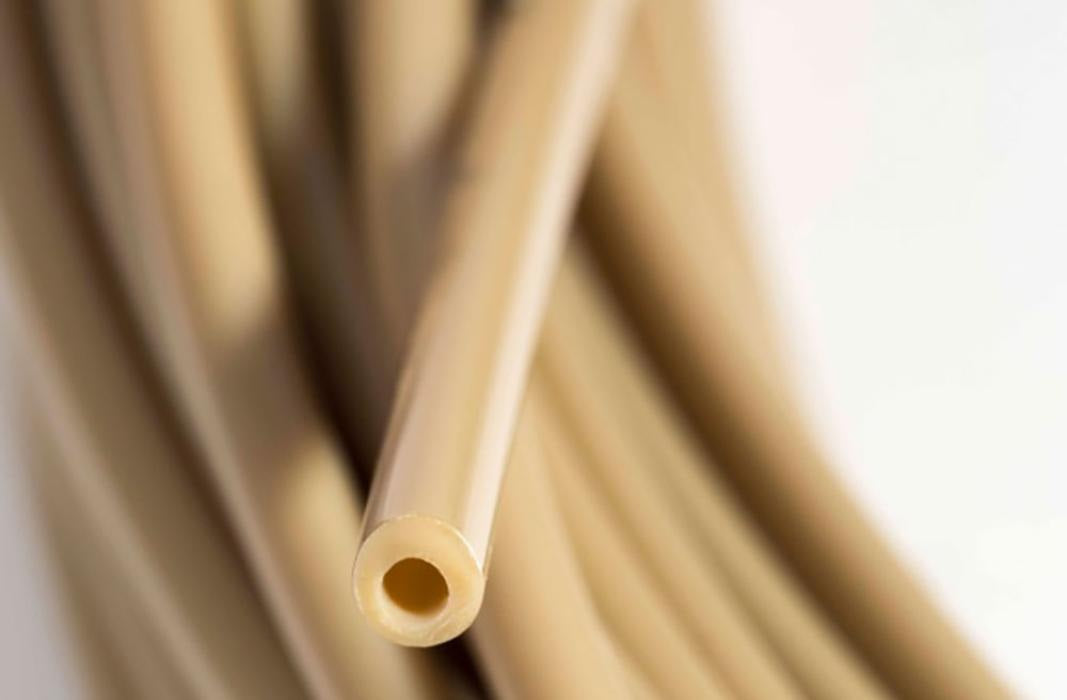

Versilon® PEEK | Capillary Tubing
Versilon® PEEK capillary tubing is designed specifically to meet the demands of high performance liquid chromatography (HPLC) applications. It is more corrosion resistant than stainless steel and has the structural integrity to withstand high pressures at elevated temperatures. Highly chemically resistant, Versilon® PEEK has extremely low extractables and is unaffected by continuous exposure to steam.
1
What is this product used for?
- Liquid chromatography
- Semiconductor
- Laboratory
2
What are the key specifications?
N/A
N/A
None
Tan
480°F
N/A
Flame retardant (UL 94 V-O)
Not intended as an implant material!
3
What are the main product features?
- Excellent chemical resistance.
- Abrasion resistance.
- High strength.
- Dimensionally stable.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Max. Working Pressure* at 73°F (23°C) PSI |
Max. Working Pressure* at 392°F (200°C) PSI |
Length |
|---|---|---|---|---|---|---|
| TSPK38-0062-026 | 0.010" | 0.062" | 0.026" | 3337 PSI | 860 PSI | 250ft |
| TSPK38-0062-021 | 0.020" | 0.062" | 0.021" | 2853 PSI | 735 PSI | 250ft |
| TSPK38-0062-016 | 0.030" | 0.062" | 0.016" | 2182 PSI | 562 PSI | 250ft |
| TSPK38-0062-011 | 0.040" | 0.062" | 0.011" | 1449 PSI | 373 PSI | 250ft |
| TSPK38-0125-031 | 0.062" | 0.125" | 0.032" | 2127 PSI | 548 PSI | 250ft |
| TSPK38-0125-023 | 0.080" | 0.125" | 0.023" | 1427 PSI | 379 PSI | 250ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® PEEK Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
2127
