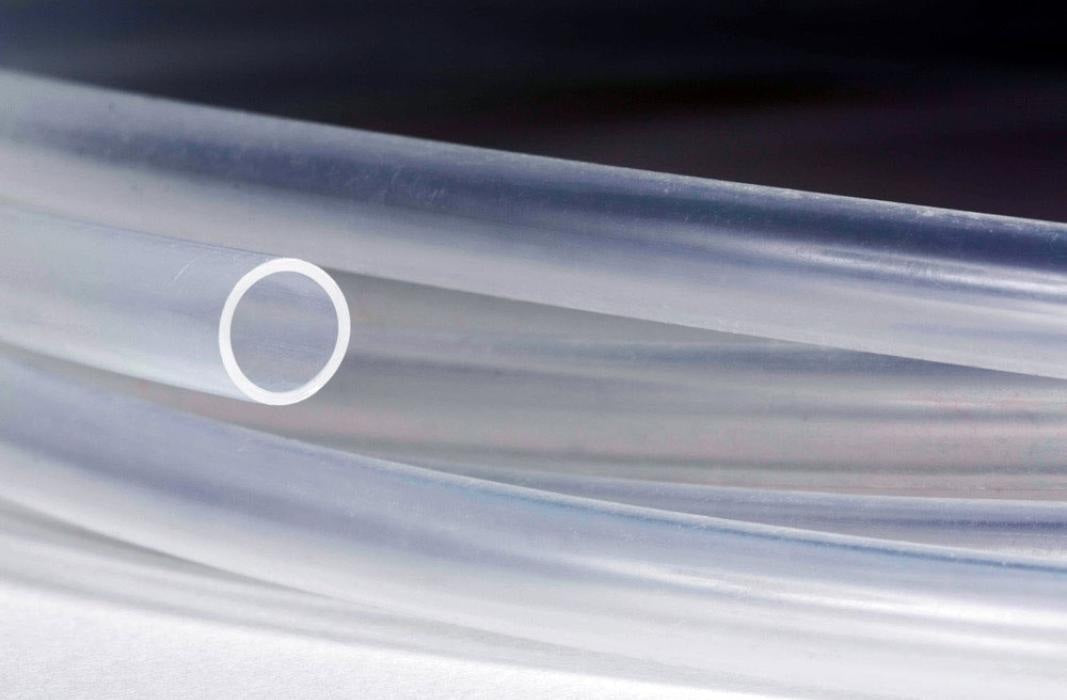

TSPF35-0312-031-50 Versilon™ by Saint Gobain | PFA Series | Superior Chemical Resistant Tubing | 1/4" ID x 5/16" OD x .031" Wall | 50' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Fluoropolymer Flexible Tubing
Versilon® PFA Tubing
Versilon® PFA from Saint-Gobain provides excellent chemical and diffusion resistance. This tubing is widely used in the semi-conductor, laboratory, environmental and pharmaceutical industries where ultrapure chemicals (including water) require precise quality control.
1
What is this product used for?
- Semiconductor industry
- Chemical processing/distribution
- Laboratory/pharmaceutical
- Environmental water sampling and analysis
- Cable coating
- Encapsulation
- Photovoltaic
- Valve and pump linings
2
What are the key specifications?
Tube
Fluoropolymer
Cover
Fluoropolymer
Reinforcement
None
Colors
Natural
Maximum Recommended Operating Temp °F (°C)
500°F (260°C)
Minimum Recommended Operating Temp °F (°C)
-328°F (-200°C)
Specifications
N/A
WARNING:
Not intended as an implant material!
3
What are the main product features?
- High level of purity.
- Excellent chemical resistance.
- Translucent.
- High resistance to stress cracking.
- Temperature resistant up to +260°C (500°F)
- Retains higher mechanical strength at elevated temperatures compared to FEP.
4
Which sizes or configurations are available?
| Part Number (50ft Lengths) |
Part Number (100ft Lengths) |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Calculated Burst Pressure psi at 73°F/ bar at 23°C |
Calculated Working Pressure psi at 73°F/ bar at 23°C |
|---|---|---|---|---|---|---|---|
| TSPF35-0125-031-50 | TSPF35-0125-031.10 | 1/16" | 1/8" | .031" | 1/2" | 1200 PSI / 82 Bar | 300 PSI / 21 Bar |
| TSPF35-0250-062-50 | TSPF35-0250-062.10 | 1/8" | 1/4" | .062" | 1/2" | 1240 PSI / 85 Bar | 310 PSI / 21 Bar |
| TSPF35-0250-047-50 | TSPF35-0250-047.10 | 5/32" | 1/4" | .047" | 1-21/64" | 900 PSI / 62 Bar | 225 PSI / 16 Bar |
| TSPF35-0250-031-50 | TSPF35-0250-031.10 | 3/16" | 1/4" | .031" | 1" | 560 PSI / 39 Bar | 140 PSI / 10 Bar |
| TSPF35-0312-062-50 | - | 3/16" | 5/16" | .062" | 1-1/2" | 960 PSI / 66 Bar | 240 PSI / 17 Bar |
| TSPF35-0312-031-50 | - | 1/4" | 5/16" | .031" | 1-3/4" | 440 PSI / 30 Bar | 110 PSI / 8 Bar |
| TSPF35-0375-062-50 | TSPF35-0375-062.10 | 1/4" | 3/8" | .062" | 1" | 800 PSI / 55 Bar | 200 PSI / 14 Bar |
| TSPF35-0375-031-50 | TSPF35-0375-031.10 | 5/16" | 3/8" | .031" | 2-1/2" | 400 PSI / 27.5 Bar | 100 PSI / 7 Bar |
| TSPF35-0500-062-50 | TSPF35-0500-062.10 | 3/8" | 1/2" | .062" | 3-31/32" | 580 PSI / 40 Bar | 145 PSI / 10 Bar |
| TSPF35-0500-031-50 | - | 7/16" | 1/2" | .031" | 4" | 292 PSI / 20 Bar | 73 PSI / 5 Bar |
| TSPF35-0625-062-50 | - | 1/2" | 5/8" | .062" | 3" | 440 PSI / 30 Bar | 110 PSI / 8 Bar |
| TSPF35-0750-062-50 | TSPF35-0750-062.10 | 5/8" | 3/4" | .062" | 8-59/64" | 400 PSI / 27.5 Bar | 100 PSI / 7 Bar |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon™ PFA Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
