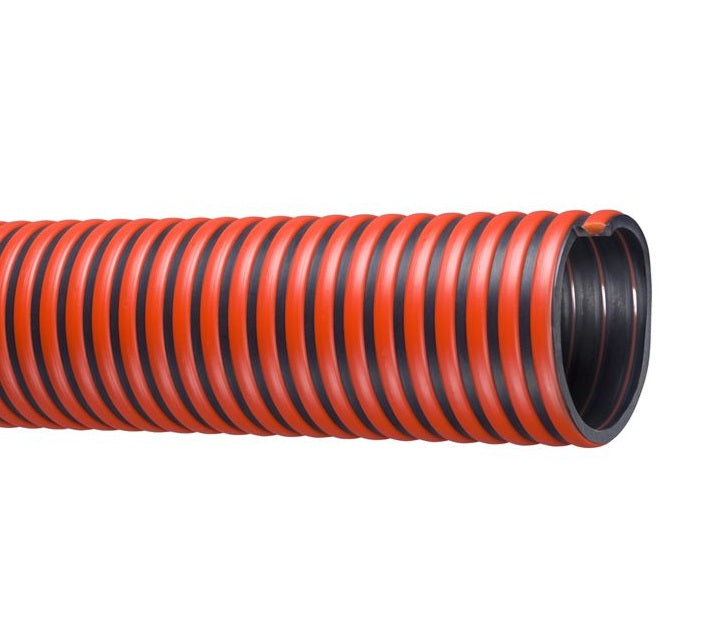

TRED300X100 Tigerflex® by Kuriyama | TRED™ Series | Tiger™ Red Liquid Suction Hose | EPDM | 3" ID | 3.60" OD | 100ft Length

TRED300X100 Tigerflex® by Kuriyama | TRED™ Series | Tiger™ Red Liquid Suction Hose | EPDM | 3" ID | 3.60" OD | 100ft Length

Sale price$1,222.31
p>Kuriyama of America Inc.
Tigerflex® | Tiger™ Red TRED™ Series | Liquid Suction Hose | EPDM

Designed for agricultural, marine, and construction fluid transfer.

Ideal for liquid fertilizers, irrigation, manure and wastewater handling, bilge discharge, dewatering and trash pumps, used frack solution removal, and standard-duty water suction.

Made in the USA.


Package Quantity: 100 Foot

Buy More, Save More!
Quantity Price Each
4–7 $1,148.97
8–14 $1,100.08
15+ $977.85
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigerflex
Series:
  • TRED Series
Color(s):
  • Red
Applications: Agriculture liquid fertilizers.
Irrigation lines.
Liquid manure handling.
Marine bilge discharge.
Pumps, rental and construction dewatering.
Pumps, trash.
Septic and wastewater handling.
Used frack solution removal.
Water suction - standard duty.
Tube: EPDM. Reinforcement: Polyethylene helix.
Cover: - Service Temperature Range: -40°F (-40°C) to +160°F (+71°C)
(Actual service temperature range is application dependent)
Specifications: RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Superior Rubber Compounds - Tigerflex™ uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance.
  • Superior Flexibility - Our tests show up to 22% more flexible than the competition, especially in sub-zero weather! Tiger™ Red Hose is more flexible coming off the truck and easier to handle than other similar hoses.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners. Easy-to-handle.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • "Cold-Flex" Materials - Hose remains flexible in subzero temperatures.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
TRED200X100 2" 50.8mm 2.51" 63.8mm 50 PSI 35 PSI Full 28 in Hg 5" 0.67 lbs
TRED300X100 3" 76.2mm 3.60" 91.5mm 45 PSI 30 PSI Full 26 in Hg 7" 1.14 lbs
TRED400X100 4" 101.6mm 4.70" 119.5mm 40 PSI 25 PSI Full 26 in Hg 11-1/2" 1.84 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
