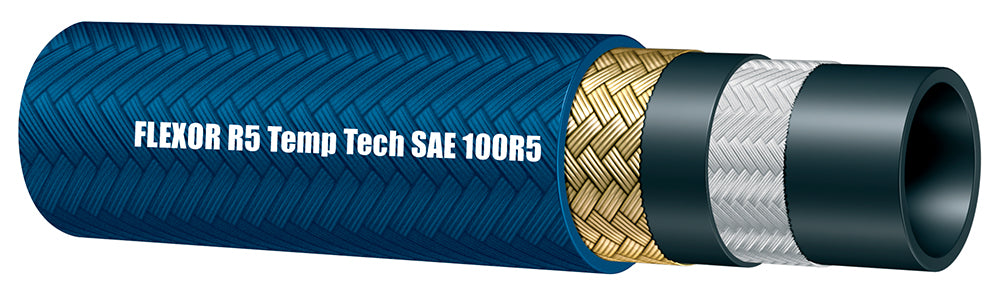

TR5HT-24 Alfagomma by Kuriyama | TR5HT Evolution Series | SAE 100R5 | Hydraulic Hose | 1-Wire Braid | 1-3/8" ID | 1.75" OD | 500 PSI
Kuriyama of America Inc.
Alfagomma | TR5HT Evolution Series | SAE 100R5 | Hydraulic Hose | 1-Wire Braid
Medium pressure service hydraulic petroleum based oil line in impulse applications; lube oil, diesel fuel lines and oil for Bio-diesel; applications such as air brakes, power steering, turbocharger oil supplies, tilt cab cylinders, transmission coolant, engine coolant and filtration lines.
Specially designed for high temperature applications. Meets or exceeds requirements of SAE 100 R5 for traditional hydraulic applications.
This item is sold as Bulk Length and thus may come in multiple sections.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $22.58 |
| 40–79 | $20.42 |
| 80+ | $18.02 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
500
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Special Properties:
| Application: | Medium pressure service hydraulic petroleum based oil line in impulse applications; lube oil, diesel fuel lines and oil for Bio-diesel; applications such as air brakes, power steering, turbocharger oil supplies, tilt cab cylinders, transmission coolant, engine coolant and filtration lines. |
SAE Rating: | Meets or exceeds SAE 100R5 |
|---|---|---|---|
| Other Ratings: | - | Tube: | Oil-resistant synthetic rubber. |
| Reinforcement: | One high tensile steel braid. | Cover: | Polyester textile braid. |
| Temperature Range: | -40°F (-40°C) to +300°F (+150°C) constant operation. | Air Maximum Temperature: | Up to 5/8" = +185°F (+85°C) Over 3/4" = +230°F (+110°C) |
| Branding: | Alfagomma R5 Evolution HT ...WP ...MPa (...PSI) - SAE 100 R5... Q/YR | ||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| TR5HT-04 | 3/16" | 4.8mm | 0.52" | 13.2mm | 3000 | 3.0" | 76.2mm | 0.16 lbs/ft |
| TR5HT-05 | 1/4" | 6.4mm | 0.58" | 14.8mm | 3000 | 3.4" | 86.4mm | 0.19 lbs/ft |
| TR5HT-06 | 5/16" | 7.9mm | 0.68" | 17.3mm | 2250 | 4.0" | 101.6mm | 0.24 lbs/ft |
| TR5HT-08 | 13/32" | 10.3mm | 0.77" | 19.5mm | 2000 | 4.6" | 116.8mm | 0.28 lbs/ft |
| TR5HT-10 | 1/2" | 12.7mm | 0.92" | 23.4mm | 1750 | 5.5" | 139.7mm | 0.38 lbs/ft |
| TR5HT-12 | 5/8" | 15.9mm | 1.08" | 27.4mm | 1500 | 6.5" | 165.1mm | 0.46 lbs/ft |
| TR5HT-16 | 7/8" | 22.2mm | 1.24" | 31.4mm | 800 | 7.3" | 185.4mm | 0.47 lbs/ft |
| TR5HT-20 | 1-1/8" | 28.6mm | 1.50" | 38.1mm | 625 | 9.0" | 228.6mm | 0.58 lbs/ft |
| TR5HT-24 | 1-3/8" | 34.9mm | 1.75" | 44.5mm | 500 | 10.5" | 266.7mm | 0.72 lbs/ft |
| TR5HT-32 | 1-13/16" | 46.0mm | 2.22" | 56.4mm | 350 | 13.2" | 335.3mm | 0.91 lbs/ft |
* Minimum burst pressure 4-to-1 safety factor.
