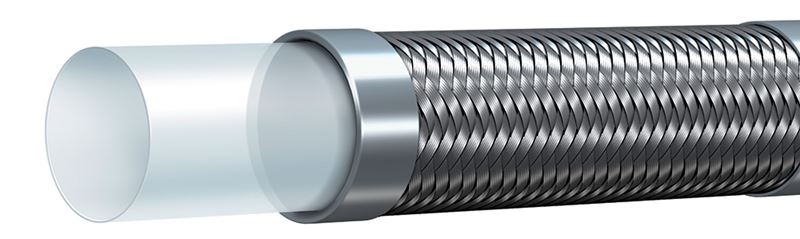

TR14TB-12 Alfagomma by Kuriyama | TR14TB Series | SAE 100R14 | True Bore High Temp Smooth PTFE Stainless Steel Braided Hose | 3/4" ID | 0.87" OD | 1600 PSI
Kuriyama of America Inc.
Alfagomma | TR14TB Series | SAE 100R14 | True Bore High Temp Smooth PTFE Stainless Steel Braided Hose
Suitable for air, gas, steam, fuel, oil, chemicals, pharmaceuticals, cryogenic lines, compressor discharge, automotive, marine, and food industry applications.
Ideal for solvents, pigments, paint, and hydraulic lines; not for molten alkali metals or high-temp halogens.
This item is sold as Bulk Length and thus may come in multiple sections.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.80 |
| 40–79 | $16.10 |
| 80+ | $14.21 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Internal Diameter:
Outer Diameter:
MAWP:
1600
Tubing Construction:
Cover Construction:
Specifications and Approvals:
| Application: | Compressed air, gas, steam, fuel, oil, chemical and pharmaceutical products, particularly suitable for steam piping on injection moulding machines, diathermic oil installations, charging lines for cryogenic gas, compressor discharge lines, automotive, pharmaceutical and food sectors. Solvents, pigments and paint transfer lines. Hydraulic lines in power steering marine applications. Not suitable for molten alkali metals and halogens at high temperature. | SAE Rating: | SAE 100R14 |
|---|---|---|---|
| Other Ratings: | AISI 304 FDA US Pharmacopeia - Class VI |
Tube: | Smooth PTFE - high mechanical and vibration resistance, low permeability, dielectrical, fire resistant, food grade (FDA, DVGW, BFR compliant). Chemically inert, non sticking, ozone and weather resistant. |
| Reinforcement: | High tensile stainless steel braid AISI 304. | Cover: | High Tensile Stainless Steel Braid. |
| Service Temperature Range: | -76°F (-60°C) to +500°F (+260°C) constant operation | Air Maximum Temperature: | - |
| Branding: | N/A | ||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| TR14TB-03 | 3/16" | 4.8mm | 0.31" | 7.8mm | 4000 PSI | 2.0" | 50.8mm | 0.06 lbs/ft |
| TR14TB-04 | 1/4" | 6.4mm | 0.34" | 8.6mm | 3500 PSI | 3.0" | 76.2mm | 0.06 lbs/ft |
| TR14TB-05 | 5/16" | 7.9mm | 0.46" | 11.6mm | 3000 PSI | 4.0" | 101.6mm | 0.09 lbs/ft |
| TR14TB-06 | 3/8" | 9.5mm | 0.50" | 12.7mm | 2600 PSI | 5.0" | 127.0mm | 0.10 lbs/ft |
| TR14TB-08 | 1/2" | 12.7mm | 0.61" | 15.4mm | 2300 PSI | 5.5" | 139.7mm | 0.13 lbs/ft |
| TR14TB-10 | 5/8" | 15.9mm | 0.72" | 18.4mm | 2000 PSI | 6.5" | 165.1mm | 0.18 lbs/ft |
| TR14TB-12 | 3/4" | 19.1mm | 0.87" | 22.1mm | 1600 PSI | 8.0" | 203.2mm | 0.22 lbs/ft |
| TR14TB-16 | 1" | 25.4mm | 1.17" | 29.8mm | 1000 PSI | 12.0" | 304.8mm | 0.35 lbs/ft |
* Minimum burst pressure 4-to-1 safety factor.
