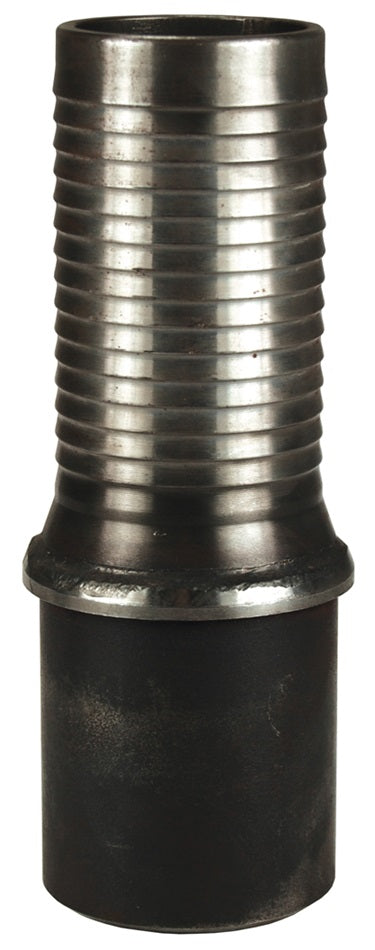

TPL32 by Dixon Valve | Holedall® External Swage Stem | Long | Beveled End for Welding | Tubular Type | 2" Beveled End x 2" Hose ID | Unplated Carbon Steel
TPL32 by Dixon Valve | Holedall® External Swage Stem | Long | Beveled End for Welding | Tubular Type | 2" Beveled End x 2" Hose ID | Unplated Carbon Steel

TPL32 by Dixon Valve | Holedall® External Swage Stem | Long | Beveled End for Welding | Tubular Type | 2" Beveled End x 2" Hose ID | Unplated Carbon Steel

Sale price$60.08
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Tubular type.
  • Provides long-lasting efficiency and safety.
  • Lightweight coupling consisting of ferrule and stem.
  • Streamlined, no protrusions to snag on equipment.
Use:
  • Designed for hose ID's 1-1/4"" - 10". The ferrule size depends on the hose OD.
How It Works:

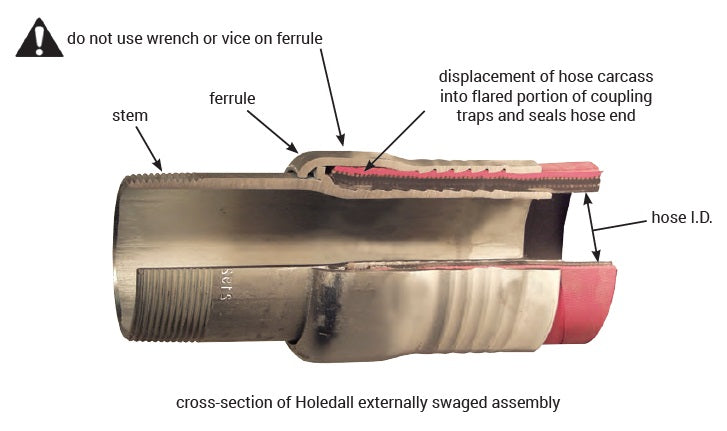

  • The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose.
  • A hydraulic ram is the only piece of machinery necessary to accomplish the coupling.
  • Couplings can be swaged or crimped.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that.
    • particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules. Consult Dixon if you do not have an updated Die and Ferrule Recommendation Guide.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or contact Dixon for material compatibility.
  • For applications other than the ones list, please consult Dixon.
Unplated Carbon Steel
Part Number		 316 Stainless Steel
Part Number		 LONG STYLE
Unplated Carbon Steel
Part Number		 Size
TP24 - - 1-1/2"
TP32 TPR32 TPL32 2"
TP40 - - 2-1/2"
TP48 TPR48 TPL48 3"
TP64 TPR64 TPL64 4"
TP80 - - 5"
TP96 - TPL96 6"
TP128 - TPL128 8"
TP160 - - 10"

Additional Product Data:

Brand:
  • Holedall
Series:
  • TPL Syle
Shape:

Straight
