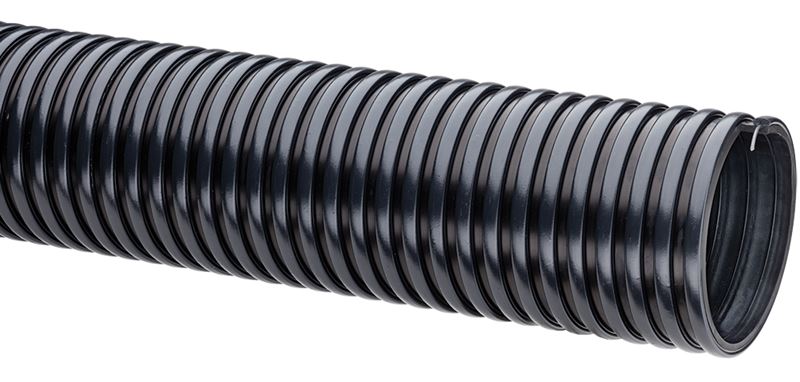

THT300X100 Tigerflex® Tiger™ HiTemp by Kuriyama | THT™ Series | Wire Reinforced Wet or Dry Material Handling Hose | EPDM | 3" ID | 3.59" OD | 100ft Length
Package Quantity: 100 Foot
Buy more, save moreDiscounts applied in cart/checkout.
High-Temperature Material Handling Hose
Kuriyama Tigerflex™ THT Series
Wire-reinforced EPDM hose designed for industrial vacuum equipment, hydroexcavation, slurry handling and other demanding material-transfer applications at temperatures up to 220°F.
Wire Reinforced
Steel helical wire supports higher-temperature service
Heat Resistant
Rated for temperatures up to 220°F
Static Dissipative
Tube and grounding wire help dissipate static charge
Cold-Flex
Remains flexible in subzero temperatures
1
What is this product used for?
- Agricultural liquid fertilizer
- Fly ash collection
- Hydroexcavation
- Industrial vacuum equipment
- Material chutes
- Milling machine scrap recovery
- Sewer truck boom hose
- Slurry handling
2
What are the key specifications?
Tube
EPDM
Reinforcement
Polyethylene helix with steel helical wire
Cover
Convoluted design
Temperature Range
-40°F (-40°C) to +220°F (+104°C)
Compliance
RoHS
Country of Origin
Made in the USA
3
What are the main product features?
- Wire-Reinforced Helix — Durable steel helical wire provides strength and supports higher-temperature operation without hose deformation. The wire can be grounded for additional static dissipation.
- Heat-Resistant Construction — Steel helical wire and EPDM materials support operation at temperatures as high as 220°F.
- Static-Dissipative Tube — Specially formulated to help prevent static electricity buildup and support smooth material flow.
- Cold-Flex Materials — Hose remains flexible in subzero temperatures.
- Convoluted Cover Design — Provides increased hose flexibility for demanding applications.
- Made in the USA — Manufactured in the United States.
4
Which sizes and lengths are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| THT300X100 | 3" | 76.2 | 3.59" | 91.2 | 40 PSI | 33 PSI | Full | 28 in Hg | 5-1/2" | 100 | 1.33 |
| THT400X100 | 4" | 101.6 | 4.63" | 117.6 | 29 PSI | 21 PSI | Full | 26 in Hg | 5-1/2" | 100 | 1.90 |
| THT500X100 | 5" | 127.0 | 5.78" | 146.8 | 25 PSI | 19 PSI | Full | 25 in Hg | 8-1/2" | 100 | 2.95 |
| THT600X50 | 6" | 152.4 | 6.87" | 178.4 | 19 PSI | 14 PSI | 27 in Hg | 24 in Hg | 10" | 50 | 3.65 |
| THT600X100 | 6" | 152.4 | 6.87" | 178.4 | 19 PSI | 14 PSI | 27 in Hg | 24 in Hg | 10" | 100 | 3.65 |
| THT800X50 | 8" | 204.8 | 9.06" | 229.8 | 14 PSI | 10 PSI | 27 in Hg | 24 in Hg | 15" | 50 | 5.94 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.
How is this product sold?
Available in 50- and 100-foot lengths, depending on hose size.
⚠ CAUTION: The helix wire is designed to help dissipate static charge when extracted and connected to ground. Do not use this hose in combustible situations unless the end user has determined that the application is not sufficient to result in propagating brush discharge.
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
40
Tubing Construction:
Specifications and Approvals:
Special Properties:
