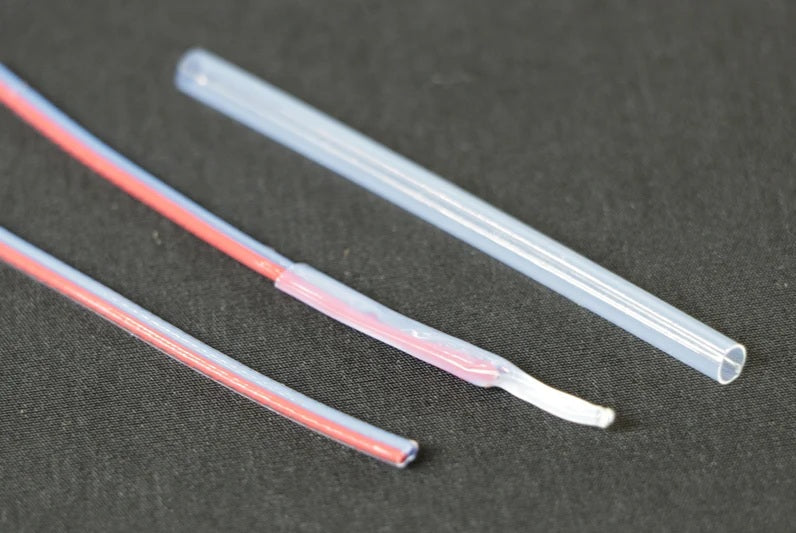

THFE4.180010 by Saint Gobain | FEP 1.3X Heat Shrink Tubing | 0.143" ID Recovered x 0.180" ID Expanded x .010" Wall | 4' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
FEP 1.3X Heat Shrink Tubing
Commonly used to protect sensors, rollers, and wires. FEP heat shrink tubing is an ideal solution for applications which require protection against high temperatures and chemical resistance. Sold in its expanded state, FEP heat shrink tubing shrinks to its original size when heat is applied, forming a tight jacket over the substrate material.
1
What is this product used for?
- Temperature sensors and probe encapsulation.
- Automotive sensor protection.
- Wires and cables insulation.
2
What are the key specifications?
FEP
FEP
None
Translucent
Working temperature up to +200°F (+392°C)
-200°F (-328°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Shrink ratio up to 1.6:1.
- Highly resistant to aggressive chemicals.
- Working temperature up to +200°C (+392°F).
- Shrink temperature: >215°C.
- Excellent electrical insulation properties.
- Easily applied to a variety of substrates.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter Expanded (in.) |
Inside Diameter Recovered (in.) |
Recovered Wall Thickness (in.) |
AWG Size (American Wire Gauge) |
Length |
|---|---|---|---|---|---|
| THFE4.045008 | 0.045" | 0.039" | 0.008" | 20 | 4ft |
| THFE4.060008 | 0.060" | 0.049" | 0.008" | 18 | 4ft |
| THFE4.115009 | 0.115" | 0.089" | 0.009" | 12 | 4ft |
| THFE4.141010 | 0.414" | 0.114" | 0.010" | 10 | 4ft |
| THFE4.158010 | 0.158" | 0.124" | 0.010" | 9 | 4ft |
| THFE4.180010 | 0.180" | 0.143" | 0.010" | 8 | 4ft |
| THFE4.290011 | 0.290" | 0.226" | 0.011" | 4 | 4ft |
| THFE4.310011 | 0.310" | 0.249" | 0.011" | 3 | 4ft |
| THFE4.365012 | 0.365" | 0.280" | 0.012" | 2 | 4ft |
| THFE4.400012 | 0.400" | 0.311" | 0.012" | 1 | 4ft |
| THFE4.440012 | 0.440" | 0.349" | 0.012" | 0 | 4ft |
| Fractional Sizes | |||||
| THFE4.500015 | 0.500" | 0.383" | 0.015" | 3/8" | 8ft |
| THFE4.580020 | 0.580" | 0.448" | 0.020" | 7/16" | 8ft |
| THFE4.666020 | 0.666" | 0.510" | 0.020" | 1/2" | 8ft |
| THFE4.830025 | 0.830" | 0.637" | 0.025" | 5/8" | 8ft |
| THFE4.100030 | 1.000" | 0.764" | 0.030" | 3/4" | 8ft |
| THFE4.117035 | 1.170" | 0.891" | 0.035" | 7/8" | 8ft |
| THFE4.133035 | 1.333" | 1.020" | 0.035" | 1" | 4ft |
| THFE4.200035 | 2.000" | 1.520" | 0.035" | 1-1/2" | 4ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain FEP Heat Shrink Tubing Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
