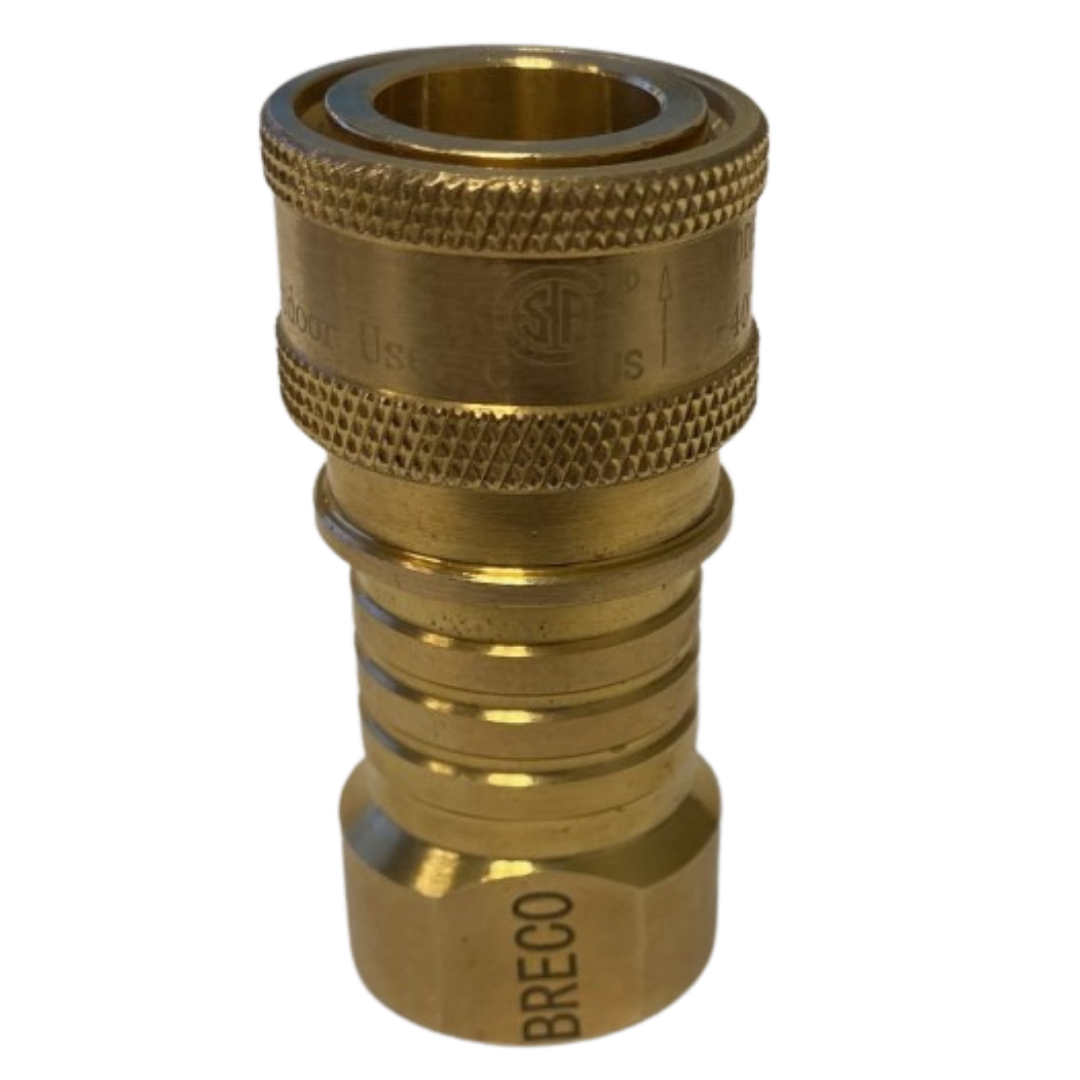

TGC-38SFB by ZSi-Foster | Thermal Gas Connector | Female Socket | 3/8" Female NPT | Brass
ZSi Foster

TGC-38SFB by ZSi-Foster | Thermal Gas Connector | Female Socket | 3/8" Female NPT | Brass

Sale price$33.61

ZSi-Foster Quick Disconnect Couplings
Thermal Gas Connector

One-way shut-off safety couplings designed for the connection of gas fired devices or applications.

Product Data:

Shape:

Straight

Material(s):
  • Brass
Applications:
  • Industrial
  • Food & Beverage
  • Fuel Gas Systems
Features:
  • Manual push to connect.
  • Automatic shut off when disconnected.
  • In case of fire, automatic closure to stop gas flow.
  • Multi-lingual instruction card.
  • Complete Sets Include: Socket, Plug, Protective Covers
Specifications:
  • Complies with the requirements of ANSI Z21.41-2014/CSA 6.9-2014.
  • CSA design certified, in both the United States and Canada, for natural gas, manufactured gas, liquified petroleum and LP gas-air mixtures at pressures not in excess of 1/2 psig {3.5 kPa).
Part Number Description Body Size Material Thread End Flow Capacity* Max Operating Pressure*
TGC-38FSB Complete Set 3/8" Brass Female NPT 50,000 BTU/HR 0.5 psi / 0.003 bar
TGC-50FSB Complete Set 1/2" Brass Female NPT 95,000 BTU/HR 0.5 psi / 0.003 bar
TGC-38PFB Plug 3/8" Brass Female NPT 50,000 BTU/HR 0.5 psi / 0.003 bar
TGC-38SFB Socket 3/8" Brass Female NPT 50,000 BTU/HR 0.5 psi / 0.003 bar
TGC-50PFB Plug 1/2" Brass Female NPT 95,000 BTU/HR 0.5 psi / 0.003 bar
TGC-50SFB Socket 1/2" Brass Female NPT 95,000 BTU/HR 0.5 psi / 0.003 bar

*The flow capacity and max operating pressure values are for when the halves are connected
