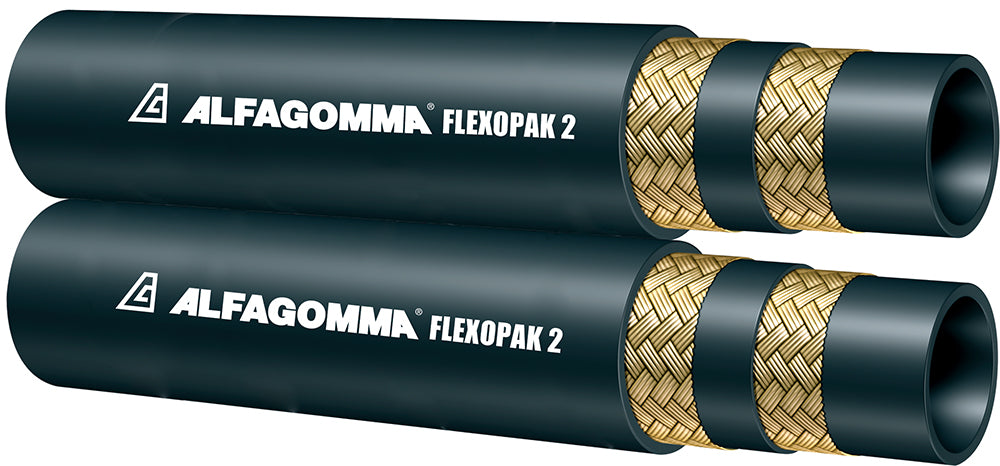

TF2TL-08 Alfagomma by Kuriyama | TF2TL TWIN Series | SAE100 R16 | Minetuff Hydraulic Hose | Double Compact Wire Braid | 1/2" ID | 0.81" OD | 4500 PSI
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | High pressure service with tight bends with petroleum-based hydraulic fluids, water/glycol, water- and fire-resistant hydraulic fluids, hot oil, grease, lubricants, crude oil, fuel oils, air and water. Excellent impulse performance, exceeding 1,000,000 cycles when tested with appropriate ALFAGOMMA couplings. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. | SAE Rating: | SAE 100R16 |
|---|---|---|---|
| Other Ratings: | EN 857 2SC MSHA IC-152/16 Approved Flame Resistance |
Tube: | Synthetic rubber, black |
| Reinforcement: | Two high tensile steel wire braids, separated by a layer of synthetic rubber | Cover: | Synthetic rubber, black... weather, oil, fuel, ozone and excellent abrasion-resistant |
| Service Temperature Range: | -40°F (-40°C) to +212°F (+100°C) constant operation | Air Maximum Temperature: | +160°F (+70°C) Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose. |
| Branding: | ALFAGOMMA FLEXOPAK 2 ID ...WP ... MPa (...PSI) - EXCEEDS SAE 100 R16 - EN 857 2SC ...DN MSHA IC-152/16 ...Q/YR | ||
| Other Features: | |||
|
|||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| TF2TL-06 | 3/8" | 9.5mm | 0.66" | 16.8mm | 5000 PSI | 2.2" | 55.9mm | 0.53 lbs/ft |
| TF2TL-08 | 1/2" | 12.7mm | 0.81" | 20.6mm | 4500 PSI | 3.5" | 88.9mm | 0.71 lbs/ft |
* Minimum burst pressure 4-to-1 safety factor.
