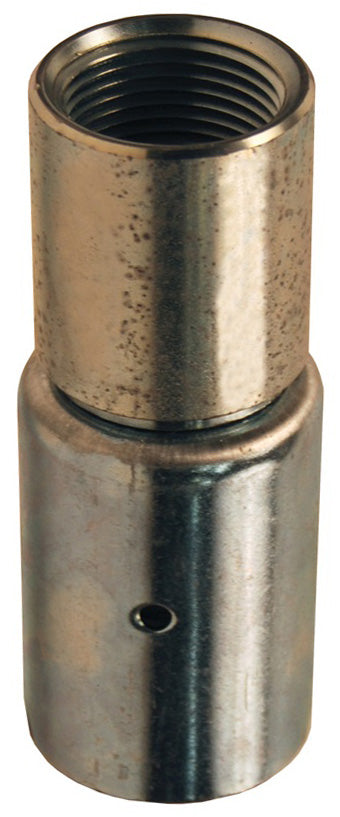

TF16WF1-80 by Dixon Valve | Holedall® External Swage Stem | Female End | Tubular Type | 1" Female NPT | Hose OD: From 1-30/64" to 1-34/64" | Plated Carbon Steel
TF16WF1-80 by Dixon Valve | Holedall® External Swage Stem | Female End | Tubular Type | 1" Female NPT | Hose OD: From 1-30/64" to 1-34/64" | Plated Carbon Steel

TF16WF1-80 by Dixon Valve | Holedall® External Swage Stem | Female End | Tubular Type | 1" Female NPT | Hose OD: From 1-30/64" to 1-34/64" | Plated Carbon Steel

Sale price$56.82
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Tubular type.
  • Two piece design.
  • The coupling system requires no bolts and results in a clean coupling with no protrusions.
  • The Holedall coupling provides long-lasting efficiency and safety.
  • Special pusher required for 1-1/4" and 2" sizes: 1-1/4" 25PUSH125-MOD, 2" 25PUSH200MOD.
How It Works:

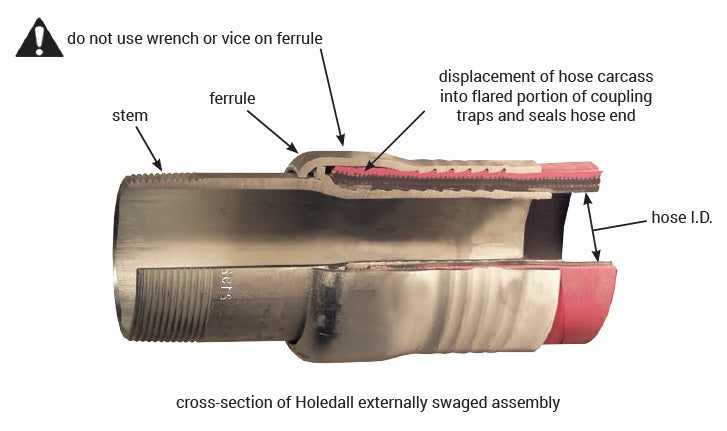

  • The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose.
  • A hydraulic ram is the only piece of machinery necessary to accomplish the coupling.
  • Couplings can be swaged or crimped.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that.
  • particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules. Consult Dixon if you do not have an updated Die and Ferrule Recommendation Guide.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or contact Dixon for material compatibility.
  • For applications other than the ones list, please consult Dixon.
Plated Carbon Steel
Part Number		 Female NPT Hose OD Range
From To
TF16WF1-80 1" 1-30/64" 1-34/64"
TF16WF2-80 1" 1-34/64" 1-38/64"
TF32WF2-80 2" 2-41/64" 2-48/64"

Additional Product Data:

Brand:
  • Holedall
Shape:

Straight

Ends Configuration:
  • 1in Female NPT
  • 1in Hose Barb
