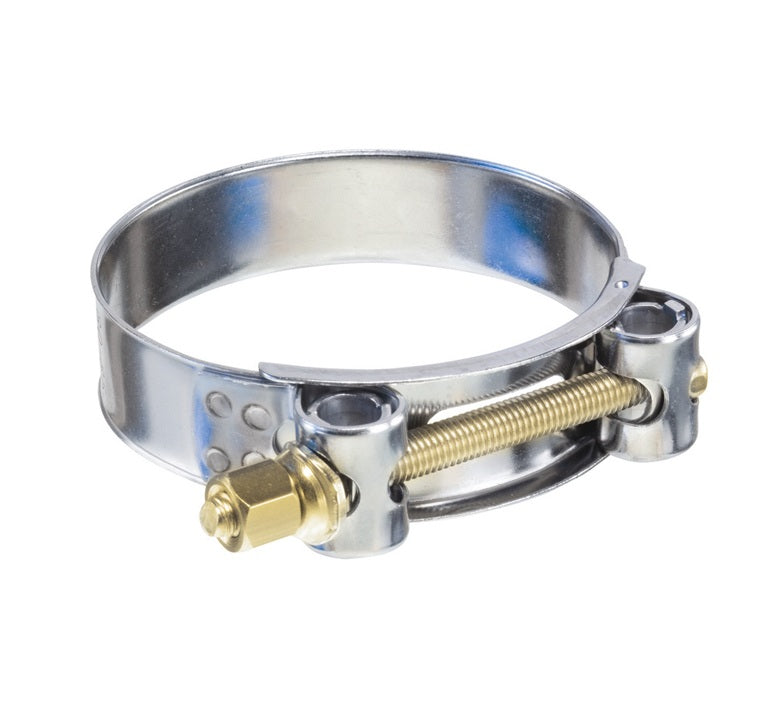

TBC-SSC226 by Kuriyama | Heavy Duty T-Bolt Hose Clamp | 8-21/32" to 8-15/16" Size Range | 1-1/32" Band Width | 304 Stainless Steel & Plated Carbon Steel

TBC-SSC226 by Kuriyama | Heavy Duty T-Bolt Hose Clamp | 8-21/32" to 8-15/16" Size Range | 1-1/32" Band Width | 304 Stainless Steel & Plated Carbon Steel

Sale price$19.77

Kuriyama of America Inc.
TBC-SSC Series | Heavy Duty T-Bolt Clamp

304 stainless steel band. Carbon steel plated bolt and nut.

T-Bolt design provides extra strength and creates a 360¢ª seal to prevent leaks.
Buy More, Save More!
Quantity Price Each
10–39 $18.58
40–79 $16.80
80+ $14.83
Discounts applied in cart/checkout.

What are the Features?

  • T-Bolt design provides extra strength and creates a 360° seal to prevent leaks.
  • Folded turn edge design of the band prevents damage to hoses or tubes.
  • Hex nut provides easy installation.

How is it Constructed?

  • 304 stainless steel band.
  • Carbon steel plated bolt and nut.
Part Number Size Range
(in)		 Band
Width
(in)		 Maximum
Torque
(ft lbs.)
TBC-SSCC019 21/32" - 3/4" 23/32" 6 ft lbs.
TBC-SSC022 25/32" - 7/8" 23/32" 6 ft lbs.
TBC-SSC025 29/32" - 1" 23/32" 6 ft lbs.
TBC-SSC028 1-1/32" - 1-3/32" 23/32" 6 ft lbs.
TBC-SSC031 1-5/32" - 1-15/32" 25/32" 7 ft lbs.
TBC-SSC035 1-1/4" - 1-3/8" 25/32" 7 ft lbs.
TBC-SSC039 1-3/8" - 1-9/16" 25/32" 7 ft lbs.
TBC-SSC043 1-5/8" - 1-13/16" 25/32" 7 ft lbs.
TBC-SSC047 1-3/4" - 1-15/16" 7/8" 10 ft lbs.
TBC-SSC051 1-7/8" - 2-1/16" 7/8" 10 ft lbs.
TBC-SSC055 2-1/8" - 2-5/16" 7/8" 10 ft lbs.
TBC-SSC059 2-1/4" - 2-7/16" 7/8" 10 ft lbs.
TBC-SSC063 2-3/8" - 2-9/16" 7/8" 10 ft lbs.
TBC-SSC067 2-17/32" - 2-13/16" 7/8" 10 ft lbs.
TBC-SSC073 2-21/32" - 2-15/16" 15/16" 17 ft lbs.
TBC-SSC079 2-29/32" - 3-3/16" 15/16" 17 ft lbs.
TBC-SSC085 3-1/32" - 3-5/16" 15/16" 17 ft lbs.
TBC-SSC091 3-9/32" - 3-9/16" 15/16" 17 ft lbs.
TBC-SSC097 3-17/32" - 3-13/16" 15/16" 17 ft lbs.
TBC-SSC103 3-25/32" - 4-1/16" 15/16" 17 ft lbs.
TBC-SSC112 4-1/32" - 4-5/16" 15/16" 17 ft lbs.
TBC-SSC121 4-17/32" - 4-13/16" 15/16" 17 ft lbs.
TBC-SSC130 4-25/32" - 5-1/16" 15/16" 17 ft lbs.
TBC-SSC139 5-9/32" - 5-9/16" 1-1/32" 29 ft lbs.
TBC-SSC148 5-17/32" - 5-13/16" 1-1/32" 29 ft lbs.
TBC-SSC161 5-7/8" - 6-11/32" 1-1/32" 29 ft lbs.
TBC-SSC174 6-17/32" - 6-13/16" 1-1/32" 29 ft lbs.
TBC-SSC187 6-7/8" - 7-3/8" 1-1/32" 29 ft lbs.
TBC-SSC200 7-13/32" - 7-7/8" 1-1/32" 29 ft lbs.
TBC-SSC213 7-29/32" - 8-3/8" 1-1/32" 29 ft lbs.
TBC-SSC226 8-21/32" - 8-15/16" 1-1/32" 29 ft lbs.
TBC-SSC239 8-15/16" - 9-13/32" 1-1/32" 29 ft lbs.
TBC-SSC252 9-7/16" - 9-29/32" 1-1/32" 29 ft lbs.

Product Data:

Series:
  • TBC-SSC Series
Material(s):
  • 304 Stainless Steel
  • Plated Carbon Steel
Clamp Width:

1.03125in

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
