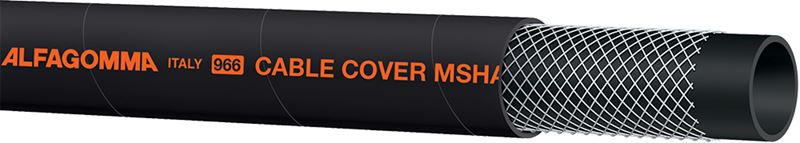

T966AA200X100 Alfagomma by Kuriyama | T966AA Series | Cable Protection Hose | 2" ID | 2.40" OD | 75 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | T966AA Series | Cable Protection Hose
Designed for cable protection in underground mining operations. Also suitable for light duty air and water applications up to 75 psi working pressures.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,006.10 |
| 8–14 | $963.29 |
| 15+ | $856.26 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
75
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Applications: | Cable protection in underground mining operations. Also suitable for light duty air and water applications up to 75 psi working pressures. | ||
|---|---|---|---|
| Other Ratings: | MSHA Accepted - Hose is accepted as having met the Interim Fire Criteria Acceptance of Products Taken Into Underground Mines per MSHA IC-152/23 | Tube: | Black conductive SBR/NR blend. |
| Reinforcement: | High tensile textile cords with 4 spiral reinforcement. | Cover: | Black conductive SBR compounds providing abrasion, ozone and flame resistance. |
| Service Temperature Range: | -22°F (-30°C) to +176 °F (+80°C) | Coupling Suggestions: | Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility. |
| Branding: | ALFAGOMMA ITALY 966 CABLE COVER MSHA IC-152/23 5 bar (75 psi) (in orange letters) | ||
| Other Features: | |||
|
|||
| Part Number | ID | OD | Max Rec. Working Pressure |
Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | (in) | (lbs/ft) | |
| T966AA050X100 | 1/2" | 13mm | 0.83" | 21mm | 75 PSI | 4" | 0.17 lbs/ft |
| T966AA062X100 | 5/8" | 16mm | 0.94" | 26mm | 75 PSI | 5" | 0.19 lbs/ft |
| T966AA075X100 | 3/4" | 19mm | 1.14" | 29mm | 75 PSI | 6" | 0.28 lbs/ft |
| T966AA100X100 | 1" | 25mm | 1.38" | 35mm | 75 PSI | 8" | 0.35 lbs/ft |
| T966AA125X100 | 1-1/4" | 32mm | 1.65" | 42mm | 75 PSI | 10" | 0.43 lbs/ft |
| T966AA150X100 | 1-1/2" | 38mm | 1.89" | 48mm | 75 PSI | 15" | 0.50 lbs/ft |
| T966AA175X100 | 1-3/4" | 45mm | 2.17" | 55mm | 75 PSI | 18" | 0.58 lbs/ft |
| T966AA200X100 | 2" | 51mm | 2.40" | 61mm | 75 PSI | 20" | 0.65 lbs/ft |
| T966AA250X100 | 2-1/2" | 63mm | 2.87" | 73mm | 75 PSI | 25" | 0.82 lbs/ft |
