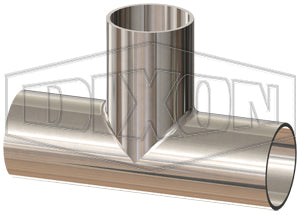

T7WWW-300PL Dixon Valve 3" Tube OD 316L Stainless Steel BioPharm Weld x Weld x Weld Tee BPE2012 (PL Finish SF1)

T7WWW-300PL Dixon Valve 3" Tube OD 316L Stainless Steel BioPharm Weld x Weld x Weld Tee BPE2012 (PL Finish SF1)

Sale price$120.94

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - Weld x Weld x Weld Tee - T7WWW

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Buy More, Save More!
Quantity Price Each
5–19 $113.68
20–59 $102.80
60+ $90.71
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 3in Weld End
  • 3in Weld End
  • 3in Weld End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size Dimensions
A OD ID
T7WWW-050PL T7WWW-050PM 1/2" 1.88" 0.50" 0.37"
T7WWW-075PL T7WWW-075PM 3/4" 2.00" 0.75" 0.62"
T7WWW-100PL T7WWW-100PM 1" 2.13" 1.00" 0.87"
T7WWW-150PL T7WWW-150PM 1-1/2" 2.38" 1.50" 1.37"
T7WWW-200PL T7WWW-200PM 2" 2.88" 2.00" 1.87"
T7WWW-250PL T7WWW-250PM 2-1/2" 3.13" 2.50" 2.37"
T7WWW-300PL T7WWW-300PM 3" 3.38" 3.00" 2.87"
T7WWW-400PL T7WWW-400PM 4" 4.13" 4.00" 3.83"
T7WWW-600PL T7WWW-600PM 6" 5.63" 6.00" 5.78"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
