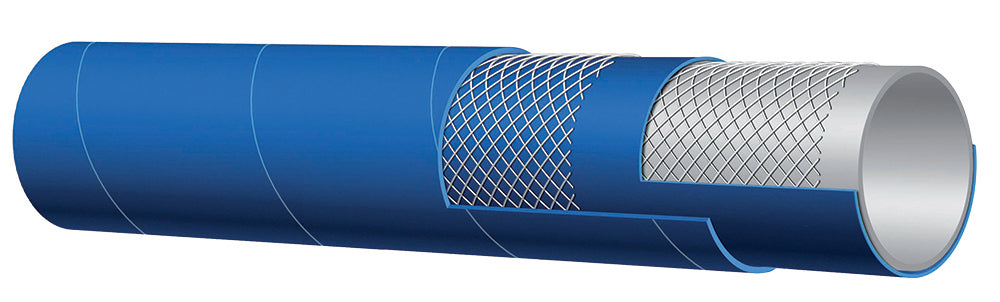

T760LE400X100 Alfagomma by Kuriyama | T714LG Series | FDA Dry Bulk Food Discharge Hose | 4" ID | 4.65" OD | 75 PSI | Blue | 100ft Length
Kuriyama of America Inc.
Alfagomma | T760LE Series | FDA Dry Bulk Food Discharge Hose
For the discharge or delivery of dry bulk food products.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,374.74 |
| 4–9 | $2,273.69 |
| 10+ | $2,021.06 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
75
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Application: | Discharge or delivery of dry bulk food products. | ||
|---|---|---|---|
| Other Ratings: | Meets FDA requirements. | Tube: | 3/16" white NR - abrasion resistant. Meets FDA requirements. |
| Reinforcement: | Spiraled high tensile textile cords with static wire. Please note: Proper grounding of static wire will prolong tube life. |
Cover: | Blue SBR/EPDM - abrasion and ozone resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting coupling attached with bands. |
| Branding: | ALFAGOMMA - ITALY T760 5 BAR (75 PSI) - BULK FOOD & MATERIAL DELIVERY (in white letters) | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | |
| T760LE400X100 | 4" | 102mm | 4.65" | 118mm | 75 PSI | 2.12 lbs/ft |
