T760AA400X100 Alfagomma by Kuriyama | T760AA Series | Light Weight Dry Powder Delivery Hose | 4" ID | 4.53" OD | 75 PSI | Black | 100ft Length
Kuriyama of America Inc.

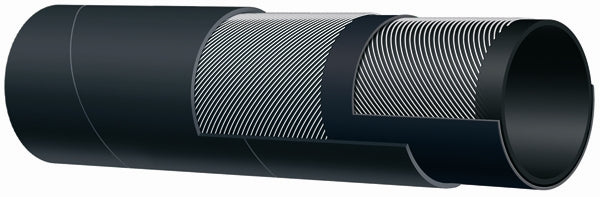

Alfagomma | T760AA Series | Light Weight Dry Powder Delivery Hose
For the discharge of dry powders under low pressure, such as dry cement, grains and animal feed transfer.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,829.15 |
| 8–14 | $1,751.31 |
| 15+ | $1,556.72 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
75
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | Discharge of dry powders under low pressure, such as dry cement, grains and animal feed transfer. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | 3/16" black static conducting NR - compounded to resist cutting by abrasive materials. |
| Reinforcement: | Spiraled high tensile textile cords. | Cover: | Black conductive SBR/NR blend - abrasion and ozone resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA - ITALY T760 5 BAR (75 PSI) BULK MATERIAL DELIVERY (in white letters) | ||
| Note: | Excessive bending during operation may cause premature wear. | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | |
| T760AA400X100 | 4" | 102mm | 4.53" | 115mm | 75 PSI | 1.58 lbs/ft |
| T760AA450X100 | 4-1/2" | 115mm | 5.00" | 127mm | 75 PSI | 1.85 lbs/ft |
| T760AA500X100 | 5" | 127mm | 5.47" | 139mm | 75 PSI | 2.05 lbs/ft |
| T760AA600X100 | 6" | 152mm | 6.61" | 168mm | 75 PSI | 2.30 lbs/ft |
