T755AA125X100 Alfagomma by Kuriyama | T755AA Series | 2-Ply Abrasive Material Blast Hose | 1-1/4" ID | 1.89" OD | 180 PSI | Black | 100ft Length

T755AA125X100 Alfagomma by Kuriyama | T755AA Series | 2-Ply Abrasive Material Blast Hose | 1-1/4" ID | 1.89" OD | 180 PSI | Black | 100ft Length

Sale price$778.05

Kuriyama of America Inc.

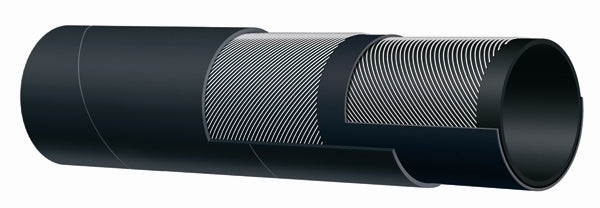

Alfagomma | T755AA Series | 2-Ply Abrasive Material Blast Hose

Formerly LT753AA Series

Designed to convey abrasives, sand and shot blast material.

Package Quantity: 100 Foot

Buy More, Save More!
Quantity Price Each
5–14 $731.37
15–29 $661.34
30+ $583.54
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • T755AA Series
Color(s):
  • Black

SPECIFICATIONS

Application: Designed to convey abrasives, sand and shot blast material.
Other Ratings: - Tube: Black static conducting NR - offering excellent abrasion resistance, upgraded to 36mm3 (cubed) rating.
Reinforcement: High tensile textile cords - 2-ply construction. Cover: Black conductive SBR/NR blend - abrasion and ozone resistant - pin pricked.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: -
Branding: ALFAGOMMA - ITALY - 755 12 BAR (180 PSI) TOP ABRASIVE MATERIAL BLAST Ù (in white letters)
Part Number
50ft		 Part Number
100ft		 ID OD Tube Thickness Max Rec.
Working
Pressure		 Weight
(in) (mm) (in) (mm) (mm) PSI lbs/ft
T755AA050X100 T755AA050X50 1/2" 13mm 1.06" 27mm 0.212mm 180 PSI 0.34 lbs/ft
T755AA125X100 T755AA125X50 1-1/4" 32mm 1.89" 48mm 0.240mm 180 PSI 0.77 lbs/ft

NOTE: Tolerances according to RMA Class 311-A

Premature hose wear can be prevented if the proper nozzle size is used for the corresponding hose ID size. (See chart below)
Series UB8 UB7 UB6 UB5 UB4
NOZZLE SIZE 1/2 7/16 3/8 5/16 1/4
CFM @ 100 PSI 350 260 200 150 90
AIR HOSE 2 1 1/2 1 1/2 1 1/4 1 1/4
S.B. HOSE SIZE 1 1/2 1 1/2 1 1/4 1 1/4 1
MAT. LB/HR 2250 1750 1260 900 540
