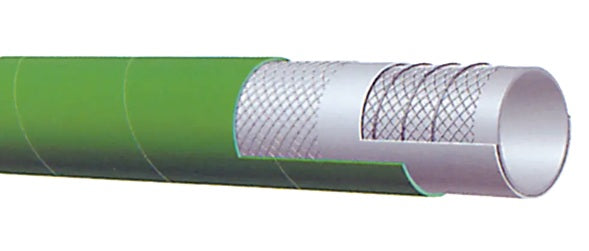

T720LG600X50 Alfagomma by Kuriyama | T720LG Series | FDA Dry Bulk Food Suction & Discharge Hose | 6" ID | 6.69" OD | 75 PSI | Green | 50ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Suction and discharge of wet or dry abrasive materials. Designed for grains, flour and pellet transfer. | ||
|---|---|---|---|
| Other Ratings: | Meets FDA requirements. | Tube: | Natural white gum rubber 3/16" thick. Meets FDA requirements. |
| Reinforcement: | Spiraled high tensile textile cords with flexible steel helix wire and static wire. Please note: Proper grounding of static wire will prolong tube life. |
Cover: | Green SBR/EPDM blend - abrasion and ozone resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA - ITALY T720 - BULK FOOD & MATERIAL - S & D (in white letters) | ||
| Part Number 20ft |
Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |||
| - | - | T720LG200X100 | 2" | 51mm | 2.64" | 67mm | 150 PSI | 30 in Hg | 6" | 1.23 lbs/ft |
| - | - | T720LG300X100 | 3" | 76mm | 3.62" | 92mm | 150 PSI | 27 in Hg | 9" | 1.91 lbs/ft |
| - | T720LG400X50 | T720LG400X100 | 4" | 102mm | 4.65" | 118mm | 150 PSI | 27 in Hg | 12" | 2.63 lbs/ft |
| T720LG500X20 | T720LG500X50 | - | 5" | 127mm | 5.71" | 145mm | 75 PSI | 24 in Hg | 20" | 3.81 lbs/ft |
| T720LG600X20 | T720LG600X50 | - | 6" | 152mm | 6.69" | 170mm | 75 PSI | 24 in Hg | 24" | 4.72 lbs/ft |
| T720LG800X20 | - | - | 8" | 203mm | 8.78" | 223mm | 75 PSI | 21 in Hg | 32" | 7.01 lbs/ft |
