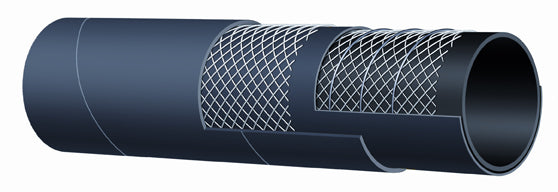

T720AA400X50 Alfagomma by Kuriyama | T720AA Series | Bulk Material Suction & Discharge Hose | 4" ID | 4.57" OD | 150 PSI | Black | 50ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | For suction and discharge of wet or dry abrasive materials. Designed for grains and dry cement. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | 3/16" black conductive NR - abrasion resistant. |
| Reinforcement: | Spiraled high tensile textile cords with flexible steel helix wire. | Cover: | Black conductive SBR/NR blend - abrasion and ozone resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA - ITALY T720 - BULK MATERIAL - S & D (in white letters) | ||
| Part Number 20ft |
Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |||
| - | - | T720AA200X100 | 2" | 51mm | 2.56" | 65mm | 150 PSI | 30" | 6" | 0.97 lbs/ft |
| - | - | T720AA300X100 | 3" | 76mm | 3.54" | 90mm | 150 PSI | 27" | 9" | 1.54 lbs/ft |
| - | T720AA400X50 | T720AA400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27" | 12" | 2.15 lbs/ft |
| T720AA500X20 | T720AA500X50 | - | 5" | 127mm | 5.63" | 143mm | 75 PSI | 24" | 20" | 3.20 lbs/ft |
| T720AA600X20 | T720AA600X50 | - | 6" | 152mm | 6.61" | 168mm | 75 PSI | 24" | 24" | 4.01 lbs/ft |
| T720AA800X20 | - | - | 8" | 203mm | 8.70" | 221mm | 75 PSI | 21" | 32" | 6.05 lbs/ft |
