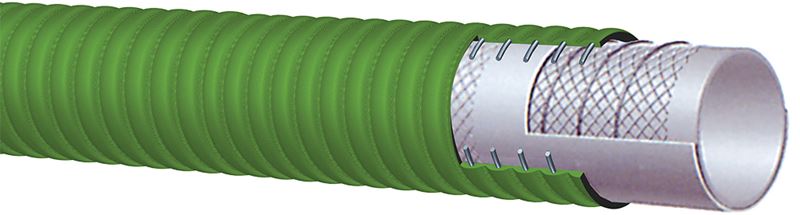

T714LG600X20 Alfagomma by Kuriyama | T714LG Series | FDA Corrugated Dry Food Material Handling Hose | 6" ID | 6.85" OD | 75 PSI | Green | 20ft Length
Kuriyama of America Inc.
Alfagomma | T714LG Series | FDA Corrugated Dry Food Material Handling Hose
For suction or discharge of wet or dry abrasive materials.
Suitable for handling materials for human consumption.
Package Quantity: 20 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,240.54 |
| 8–14 | $1,187.75 |
| 15+ | $1,055.78 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
75
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Application: | For suction or discharge of wet or dry abrasive materials. Suitable for handling materials for human consumption. | ||
|---|---|---|---|
| Other Ratings: | Meets FDA requirements. | Tube: | Natural white gum rubber 3/16" thick. Meets FDA requirements. |
| Reinforcement: | Spiraled high tensile textile cords with flexible steel helix wire and static wire. | Cover: | Green corrugated Nat/SBR blend rubber. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA - ITALY T714 - 5 Bar (75 PSI) - BULK FOOD & MATERIAL - S & D (in white letters) | ||
| Part Number 20ft |
Part Number 50ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | ||
| T714LG500X20 | T714LG500X50 | 5" | 127mm | 5.63" | 143mm | 75 PSI | 24 in Hg | 12.5" | 3.8 lbs/ft |
| T714LG600X20 | T714LG600X50 | 6" | 152mm | 6.85" | 174mm | 75 PSI | 24 in Hg | 24" | 4.75 lbs/ft |
| T714LG800X20 | - | 8" | 203mm | 8.94" | 227mm | 75 PSI | 21 in Hg | 32" | 7.01 lbs/ft |
