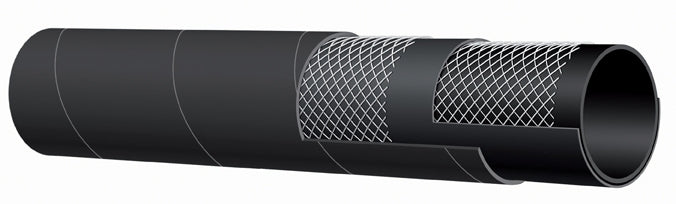

T6D1AA400X100 Alfagomma by Kuriyama | T6D1AA Series | Oil Rigger / Frack Discharge Hose | 4" ID | 4.72" OD | 400 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | T6D1AA Series | Oil Rigger / Frack Discharge Hose
For fracking fluids, liquid mud and crude oil delivery in oil field and gas exploration.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,789.22 |
| 4–9 | $2,670.53 |
| 10+ | $2,373.81 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
400
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Fracking fluids, liquid mud and crude oil delivery in oil field and gas exploration. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black synthetic elastomer. |
| Reinforcement: | High tensile textile cords. | Cover: | Black synthetic elastomer - abrasion, oil and ozone resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | - |
| Branding: | ALFAGOMMA - ITALY OIL RIGGER - FRACK 27 BAR (400 PSI) (in blue letters) | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | |
| T6D1AA400X100 | 4" | 102mm | 4.72" | 120mm | 400 PSI | 2.89 lbs/ft |
