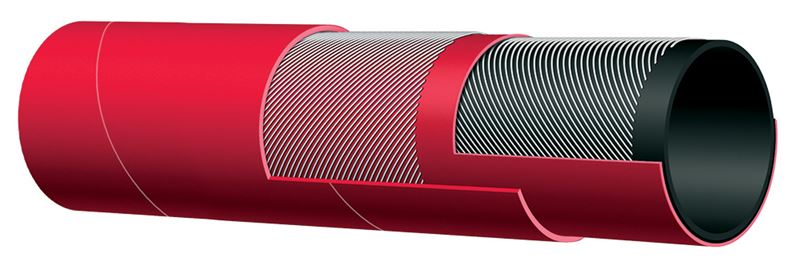

T650AH400X100 Alfagomma by Kuriyama | T650AH Series | Oil Discharge Hose | 4" ID | 4.49" OD | 150 PSI | Red | 100ft Length
Kuriyama of America Inc.
Alfagomma | T650AH Series | Oil Discharge Hose
An oil discharge hose designed for use on trucks, docks or barges where a soft wall hose is required.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,430.32 |
| 4–9 | $2,326.91 |
| 10+ | $2,068.36 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | Oil discharge hose designed for use on trucks, docks or barges where a soft wall hose is required. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black conductive NBR. |
| Reinforcement: | Spiraled high tensile textile cords with embedded static wire. | Cover: | Red CR - abrasion, ozone and hydrocarbon resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting or combination nipples attached with bands. |
| Branding: | ALFAGOMMA - ITALY T650 10 BAR (150 PSI) - PETROLEUM DELIVERY (in yellow letters) | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | |
| T650AH150X100 | 1-1/2" | 38mm | 1.97" | 50mm | 150 PSI | 0.77 lbs/ft |
| T650AH200X100 | 2" | 51mm | 2.40" | 61mm | 150 PSI | 0.82 lbs/ft |
| T650AH300X100 | 3" | 76mm | 3.46" | 88mm | 150 PSI | 1.42 lbs/ft |
| T650AH400X100 | 4" | 102mm | 4.49" | 114mm | 150 PSI | 1.92 lbs/ft |
