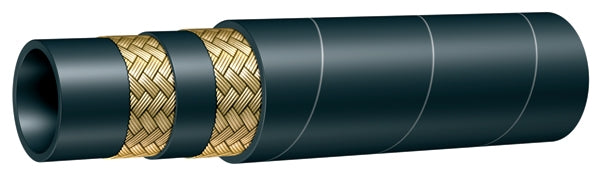

T631AA100X100 Alfagomma by Kuriyama | T631AA Series | Hot Tar & Asphalt Applicator Delivery Hose | 1" ID | 1.50" OD | 300 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | T631AA Series | Hot Tar & Asphalt Applicator Delivery Hose
For hot tar and asphalt delivery service.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,250.37 |
| 8–14 | $1,197.16 |
| 15+ | $1,064.14 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Hot tar and asphalt delivery service. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black NBR - hot tar and asphalt resistant. |
| Reinforcement: | High tensile steel wire braids. | Cover: | Black CR - abrasion, ozone, hydrocarbon and fire resistant. |
| Service Temperature Range: | -22°F (-30°C) to +356°F (+180°C) | Coupling Suggestions: | Permanently attached couplings are suggested for assemblies. |
| Branding: | ALFAGOMMA - ITALY T631 20 BAR (300 PSI) HOT TAR AND ASPHALT (embossed) | ||
| Safety Factor: | 10:1 | ||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Wall Thickness |
Max Rec. Working Pressure |
Min. Bend Radius |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (mm) | PSI | (in) | lbs/ft | ||
| T631AA075X50 | T631AA075X100 | 3/4" | 19mm | 1.26" | 32mm | 6mm | 300 PSI | 3" | 0.50 lbs/ft |
| - | T631AA100X100 | 1" | 25mm | 1.50" | 38mm | 6mm | 300 PSI | 3" | 0.77 lbs/ft |
