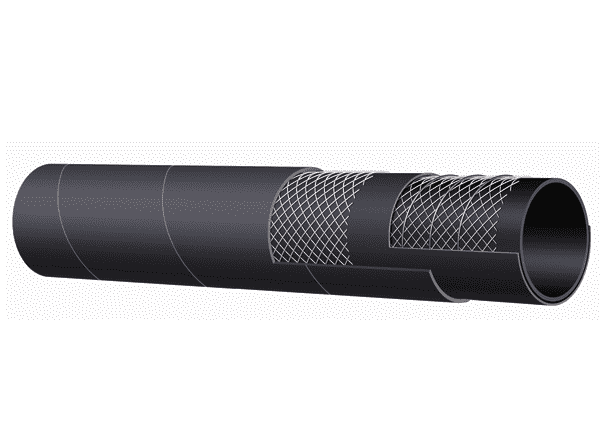

T620AA600X20 Alfagomma by Kuriyama | Black Fuel & Oil S & D Hose | 6" ID | 6.69" OD | 300 PSI | 20ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Fuel and oil suction and discharge for up to 50% aromatic content. Designed for heavy duty applications. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black conductive NBR. |
| Reinforcement: | High tensile textile cords, steel helix wires and static wire. | Cover: | Black conductive CR - abrasion, ozone and hydrocarbon resistant. |
| Temperature Range: | -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Nominal ID | Nominal ID | Max Rec. Working Pressure | Vacuum HG | Max Rec. Working Pressure | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (in.) | (ft.) | (lbs./ft.) | |
| T620AA200X100 | 2" | 51mm | 2.48" | 63mm | 300 PSI | 30" | 8" | 100ft | 1.10 lbs |
| T620AA300X100 | 3" | 76mm | 3.54" | 90mm | 300 PSI | 27" | 12" | 100ft | 1.77 lbs |
| T620AA400X100 | 4" | 102mm | 4.57" | 116mm | 300 PSI | 27" | 16" | 100ft | 2.43 lbs |
| T620AA600X100 | 6" | 152mm | 6.69" | 170mm | 300 PSI | 24" | 24" | 100ft | 5.60 lbs |
| T620AA600X20 | 6" | 152mm | 6.69" | 170mm | 300 PSI | 24" | 24" | 20ft | 5.60 lbs |
