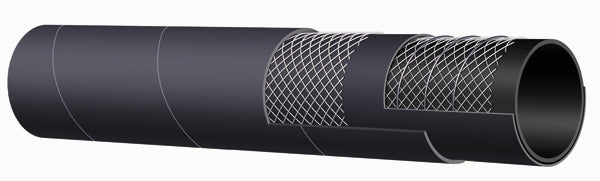

T620AA200X100 Alfagomma by Kuriyama | T620AA Series | Fuel & Oil Suction & Discharge Hose | 2" ID | 2.48" OD | 300 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | T620AA Series | Fuel & Oil Suction & Discharge Hose
For Fuel and oil suction and discharge for up to 50% aromatic content. Designed for heavy duty applications.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,692.05 |
| 8–14 | $1,620.05 |
| 15+ | $1,440.04 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | Fuel and oil suction and discharge for up to 50% aromatic content. Designed for heavy duty applications. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black conductive NBR. |
| Reinforcement: | High tensile textile cords with steel helix wire and static wire. | Cover: | Black conductive CR - abrasion, ozone and hydrocarbon resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules. |
| Branding: | ALFAGOMMA - ITALY T620 - 20 BAR (300 PSI) PETROLEUM - S & D Ω (in red letters) | ||
| Part Number 20ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | ||
| - | T620AA200X100 | 2" | 51mm | 2.48" | 63mm | 300 PSI | 30 in Hg | 8" | 1.10 lbs/ft |
| - | T620AA300X100 | 3" | 76mm | 3.54" | 90mm | 300 PSI | 27 in Hg | 12" | 1.77 lbs/ft |
| - | T620AA400X100 | 4" | 102mm | 4.57" | 116mm | 300 PSI | 27 in Hg | 16" | 2.43 lbs/ft |
| T620AA600X20 | T620AA600X100 | 6" | 152mm | 6.69" | 170mm | 300 PSI | 24 in Hg | 24" | 5.60 lbs/ft |
| T620AA800X20 | - | 8" | 203mm | 8.86" | 225mm | 300 PSI | 21 in Hg | 32" | 9.24 lbs/ft |
