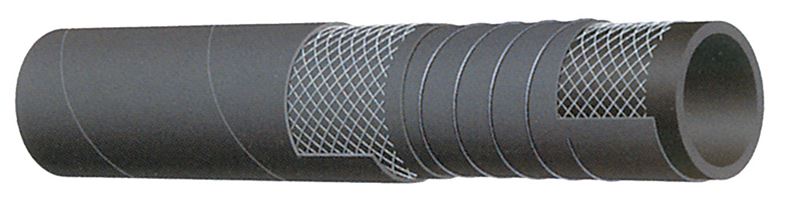

T614AA400X100 Alfagomma by Kuriyama | T614AA Series | Hot Tar & Asphalt Suction & Discharge Hose | 4" ID | 4.80" OD | 150 PSI | Black | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Hot tar and asphalt suction and discharge service. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black NBR - hot tar and asphalt resistant. |
| Reinforcement: | High tensile textile cords with steel helix wire. | Cover: | Black CSM - abrasion, ozone and hot tar resistant. |
| Service Temperature Range: | -4°F (-20°C) to +356°F (+180°C) | Coupling Suggestions: | Permanently attached couplings are suggested for assemblies. |
| Branding: | ALFAGOMMA - ITALY T614 10 BAR (150 PSI) HOT TAR AND ASPHALT (on red stripe) | ||
| Part Number 100ft |
ID | OD | Wall Thickness |
Max Rec. Working Pressure |
Vacuum | Min. Bend Radius |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T614AA200X100 | 2" | 51mm | 2.72" | 69mm | 9mm | 150 PSI | 30" | 10" | 1.64 lbs/ft |
| T614AA300X100 | 3" | 76mm | 3.78" | 96mm | 10mm | 150 PSI | 27" | 15" | 2.69 lbs/ft |
| T614AA400X100 | 4" | 102mm | 4.80" | 122mm | 10mm | 150 PSI | 27" | 20" | 3.57 lbs/ft |
