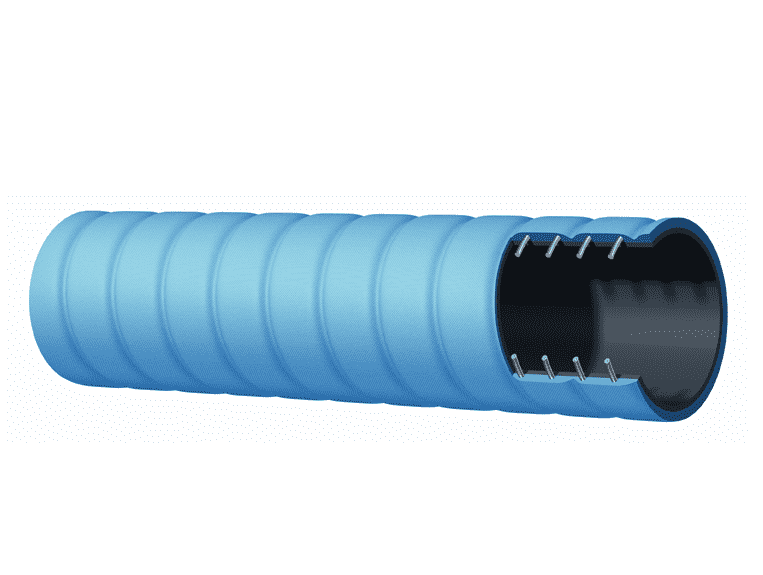

T606AE300X100 Alfagomma by Kuriyama | Corrugated Petroleum S & D Arctic Hose | Blue | 3" ID | 150 PSI | 100ft Length
Kuriyama Alfagomma® T606AE Series 150 PSI Corrugated Petroleum Suction & Discharge - Arctic Hose - Red
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,536.63 |
| 4–9 | $2,428.69 |
| 10+ | $2,158.83 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Special Properties:
SPECIFICATIONS
| Application: | For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. Where extreme flexibility is needed in low temperature. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black conductive NBR. |
| Reinforcement: | High tensile textile cords and highly flexible steel helix wires. | Cover: | Blue corrugated - abrasion, ozone and hydrocarbon resistant. |
| Temperature Range: | -65 deg. F (-54 deg. C) to 180 deg. F (+82 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Nominal ID | Max Rec. Working Pressure | Vacuum HG | Min. Bending Radius | Standard Length | Weight | |
|---|---|---|---|---|---|---|---|
| (in.) | (mm) | PSI | (in.) | (in.) | (ft.) | (lbs./ft.) | |
| T606AE200X100 | 2" | 51mm | 150 PSI | 30" | 3" | 100ft | 1.06 lbs |
| T606AE300X100 | 3" | 76mm | 150 PSI | 30" | 4-1/2" | 100ft | 2.84 lbs |
| T606AE400X100 | 4" | 102mm | 150 PSI | 30" | 6" | 100ft | 2.67 lbs |
