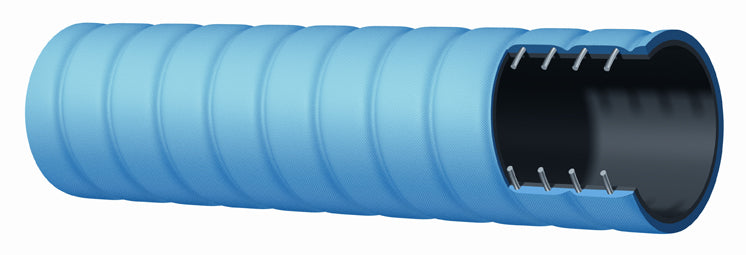

T606AE200X100 Alfagomma by Kuriyama | T606AE Series | Corrugated Petroleum Suction & Discharge Arctic Hose | 2" ID | 2.48" OD | 150 PSI | Blue | 100ft Length
Kuriyama of America Inc.
Alfagomma | T606AE Series | Corrugated Petroleum Suction & Discharge Arctic Hose
For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.
Use where extreme flexibility is needed in low temperature.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $2,014.97 |
| 8–14 | $1,929.23 |
| 15+ | $1,714.87 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Special Properties:
SPECIFICATIONS
| Application: | For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. Where extreme flexibility is needed in low temperature. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black conductive NBR. |
| Reinforcement: | High tensile textile cords with flexible steel helix wire. | Cover: | Blue corrugated - abrasion, ozone and hydrocarbon resistant. |
| Service Temperature Range: | -65°F (-54°C) to +180°F (+82°C) | Coupling Suggestions: | Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules. |
| Branding: | ALFAGOMMA - ITALY T606 - 10 BAR (150 PSI) PETROLEUM - S & D Arctic (in blue letters on yellow layline) | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T606AE200X100 | 2" | 51mm | 2.48" | 63mm | 150 PSI | 30 in Hg | 3" | 1.06 lbs/ft |
| T606AE300X100 | 3" | 76mm | 3.54" | 90mm | 150 PSI | 30 in Hg | 4-1/2" | 1.84 lbs/ft |
| T606AE400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 30 in Hg | 6" | 2.67 lbs/ft |
