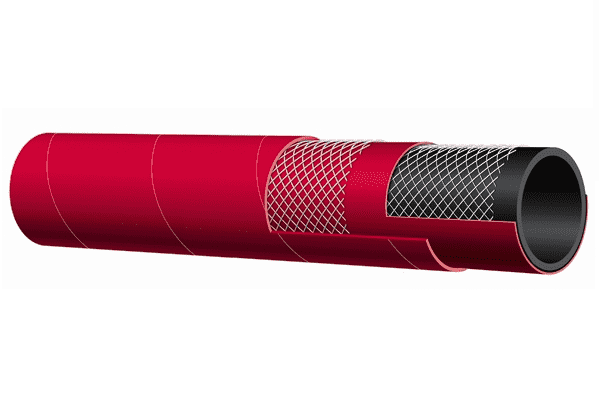

T605AH400X100 Alfagomma by Kuriyama | Red Petroleum S & D Hose | 4" ID | 4.57" OD | 150 PSI | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black conductive NBR. |
| Reinforcement: | High tensile textile cords and highly flexible steel helix wires. | Cover: | Red CR - abrasion, ozone and hydrocarbon resistant. |
| Temperature Range: | -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Nominal ID | Nominal OD | Max Rec. Working Pressure | Vacuum HG | Min. Bending Radius | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (in.) | (ft.) | (lbs./ft.) | |
| T605AH150X100 | 1-1/2" | 38mm | 1.89" | 48mm | 150 PSI | 30" | 6" | 100ft | 0.73 lbs |
| T605AH200X100 | 2" | 51mm | 2.40" | 61mm | 150 PSI | 30" | 8" | 100ft | 0.94 lbs |
| T605AH300X100 | 3" | 76mm | 3.46" | 88mm | 150 PSI | 27" | 12" | 100ft | 1.74 lbs |
| T605AH400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27" | 16" | 100ft | 2.41 lbs |
