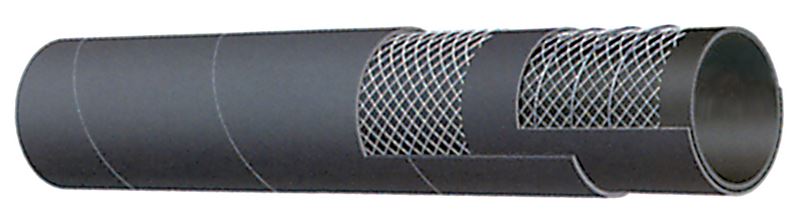

T605AA800X20 Alfagomma by Kuriyama | T605AA Evolution Series | Petroleum Suction & Discharge Hose | 8" ID | 8.86" OD | 150 PSI | Black | 20ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. Also suitable for marine wet exhaust and bilge pump connections. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black conductive NBR. |
| Reinforcement: | High tensile textile cords with flexible steel helix wire. | Cover: | Black CR - abrasion, ozone and hydrocarbon resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules. |
| Branding: | ALFAGOMMA - ITALY 605 EVOLUTION- 10 BAR (150 PSI) PETROLEUM - S & D Ù - SAE 100R4 (in red letters) T605 IS NOT RECOMMENDED FOR USE ON A REEL. |
||
| Part Number 20ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | ||
| - | T605AA075X100 | 3/4" | 19mm | 1.18" | 30mm | 150 PSI | 30 in Hg | 1.5" | 0.40 lbs/ft |
| - | T605AA100X100 | 1" | 25mm | 1.42" | 36mm | 150 PSI | 30 in Hg | 2" | 0.50 lbs/ft |
| - | T605AA125X100 | 1-1/4" | 32mm | 1.69" | 43mm | 150 PSI | 30 in Hg | 2.5" | 0.60 lbs/ft |
| - | T605AA150X100 | 1-1/2" | 38mm | 1.93" | 49mm | 150 PSI | 30 in Hg | 3" | 0.70 lbs/ft |
| - | T605AA200X100 | 2" | 51mm | 2.44" | 62mm | 150 PSI | 30 in Hg | 4" | 0.91 lbs/ft |
| - | T605AA250X100 | 2-1/2" | 63mm | 2.99" | 76mm | 150 PSI | 30 in Hg | 7.5" | 1.40 lbs/ft |
| - | T605AA300X100 | 3" | 76mm | 3.50" | 89mm | 150 PSI | 30 in Hg | 9" | 1.59 lbs/ft |
| - | T605AA400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 30 in Hg | 12" | 2.29 lbs/ft |
| T605AA600X20 | T605AA600X100 | 6" | 152mm | 6.69" | 170mm | 150 PSI | 25 in Hg | 24" | 4.86 lbs/ft |
| T605AA800X20 | - | 8" | 203mm | 8.86" | 225mm | 150 PSI | 25 in Hg | 32" | 7.74 lbs/ft |
