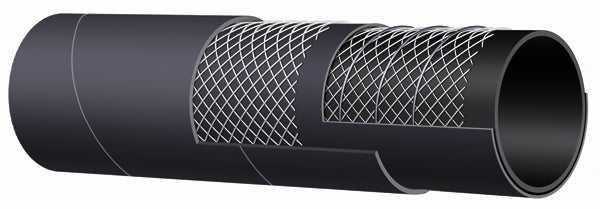

T601AA600X20 Alfagomma by Kuriyama | T601AA Series | Oil Rigger/Oil Field Frack Tank Hose | 6" ID | 6.61" OD | 150 PSI | Black | 20ft Length
Kuriyama of America Inc.
Alfagomma | T601AA Series | Oil Rigger/Oil Field-Frack Tank Hose
For oil field vacuum tank service, for handling crude oil, frack solutions and slurries.
For applications up to 35% aromatics.
Package Quantity: 20 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,079.13 |
| 8–14 | $1,033.21 |
| 15+ | $918.41 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Oil field vacuum tank service, for handling crude oil, frack solutions and slurries. Note: For applications up to 35% aromatics. Not for use with refined petroleum products. |
||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black Nitrile - PVC blend, limited oil resistance, for oil field use. |
| Reinforcement: | High tensile textile cords with flexible steel helix wire. | Cover: | Black SBR - abrasion, ozone, limited oil resistance. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting couplings or combination nipples attached with bands. |
| Branding: | ALFAGOMMA - ITALY T601 10 BAR (150 PSI) OIL FIELD-FRACK TANK HOSE (in blue letters) | ||
| Part Number 20ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | ||
| - | T601AA200X100 | 2" | 51mm | 2.40" | 61mm | 150 PSI | 30 in Hg | 10" | 0.93 lbs/ft |
| - | T601AA300X100 | 3" | 76mm | 3.46" | 88mm | 150 PSI | 27 in Hg | 15" | 1.73 lbs/ft |
| - | T601AA400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27 in Hg | 20" | 2.40 lbs/ft |
| T601AA600X20 | T601AA600X100 | 6" | 152mm | 6.61" | 168mm | 150 PSI | 24 in Hg | 30" | 4.59 lbs/ft |
