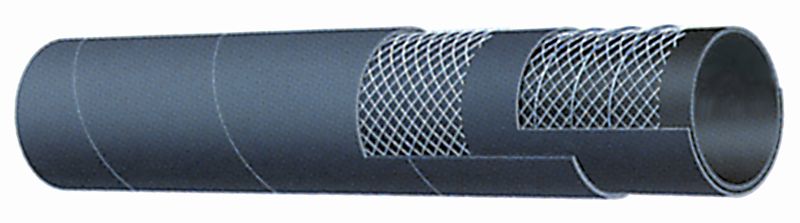

T600AA500X50 Alfagomma by Kuriyama | T600AA Series | Hard Wall Marine Exhaust Hose | USCG/SAE J1527 A2/B2 | 5" ID | 5.55" OD | 30 PSI | Black | 50ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Fuel, oil and hydraulic fluids suction and discharge. Suitable for exhaust gas from water cooled stationary or marine diesel engines. Offers maximum flexibility. | ||
|---|---|---|---|
| Other Ratings: | USCG/SAE J1527 A2/B2 | Tube: | Black NBR - exhaust gas, fuel and fire resistant. |
| Reinforcement: | High tensile textile cords with flexible steel helix wire. | Cover: | Black NBR/PVC blend - abrasion, ozone, hydrocarbon and fire resistant. |
| Service Temperature Range: | -4°F (-20°C) to +212°F (+100°C) | Coupling Suggestions: | - |
| Branding: | ALFAGOMMA - ITALY T600 MARINE EXHAUST/FUEL S & D - |
||
| Part Number 25ft |
Part Number 50ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | ||
| T600AA062X25 | T600AA062X50 | 5/8" | 16mm | 1.02" | 26mm | 30 PSI | 30 in Hg | 2" | 0.36 lbs/ft |
| T600AA075X25 | T600AA075X50 | 3/4" | 19mm | 1.14" | 29mm | 30 PSI | 30 in Hg | 2-1/4" | 0.44 lbs/ft |
| T600AA087X25 | T600AA087X50 | 7/8" | 22mm | 1.26" | 32mm | 30 PSI | 30 in Hg | 2-3/4" | 0.50 lbs/ft |
| T600AA100X25 | T600AA100X50 | 1" | 25mm | 1.38" | 35mm | 30 PSI | 30 in Hg | 3" | 0.56 lbs/ft |
| T600AA112X25 | T600AA112X50 | 1-1/8" | 28mm | 1.50" | 38mm | 30 PSI | 30 in Hg | 3-1/4" | 0.60 lbs/ft |
| T600AA125X25 | T600AA125X50 | 1-1/4" | 32mm | 1.65" | 42mm | 30 PSI | 30 in Hg | 3-3/4" | 0.65 lbs/ft |
| T600AA137X25 | T600AA137X50 | 1-3/8" | 35mm | 1.77" | 45mm | 30 PSI | 30 in Hg | 4-1/4" | 0.70 lbs/ft |
| T600AA150X25 | T600AA150X50 | 1-1/2" | 38mm | 1.89" | 48mm | 30 PSI | 30 in Hg | 4-1/2" | 0.76 lbs/ft |
| T600AA162X25 | T600AA162X50 | 1-5/8" | 42mm | 2.17" | 52mm | 30 PSI | 30 in Hg | 5" | 0.81 lbs/ft |
| T600AA175X25 | T600AA175X50 | 1-3/4" | 45mm | 2.16" | 55mm | 30 PSI | 30 in Hg | 5-1/4" | 0.87 lbs/ft |
| T600AA189X25 | T600AA189X50 | 1-7/8" | 48mm | 2.28" | 58mm | 30 PSI | 30 in Hg | 5-3/4" | 0.91 lbs/ft |
| T600AA200X25 | T600AA200X50 | 2" | 51mm | 2.40" | 61mm | 30 PSI | 30 in Hg | 6" | 0.99 lbs/ft |
| T600AA225X25 | T600AA225X50 | 2-1/4" | 57mm | 2.64" | 67mm | 30 PSI | 30 in Hg | 6-3/4" | 1.09 lbs/ft |
| T600AA238X25 | T600AA238X50 | 2-3/8" | 60mm | 2.76" | 70mm | 30 PSI | 27 in Hg | 7" | 1.25 lbs/ft |
| T600AA250X25 | T600AA250X50 | 2-1/2" | 63mm | 2.87" | 73mm | 30 PSI | 27 in Hg | 7-1/2" | 1.31 lbs/ft |
| T600AA275X25 | T600AA275X50 | 2-3/4" | 70mm | 3.11" | 80mm | 30 PSI | 27 in Hg | 8-1/4" | 1.41 lbs/ft |
| T600AA300X25 | T600AA300X50 | 3" | 76mm | 3.39" | 86mm | 30 PSI | 27 in Hg | 9" | 1.53 lbs/ft |
| T600AA350X25 | T600AA350X50 | 3-1/2" | 90mm | 3.94" | 100mm | 30 PSI | 27 in Hg | 10-1/2" | 1.91 lbs/ft |
| T600AA400X25 | T600AA400X50 | 4" | 102mm | 4.41" | 112mm | 30 PSI | 27 in Hg | 12" | 2.12 lbs/ft |
| T600AA450X25 | T600AA450X50 | 4-1/2" | 115mm | 5.00" | 127mm | 30 PSI | 27 in Hg | 13-1/2" | 2.72 lbs/ft |
| T600AA500X25 | T600AA500X50 | 5" | 127mm | 5.55" | 141mm | 30 PSI | 24 in Hg | 15" | 3.04 lbs/ft |
