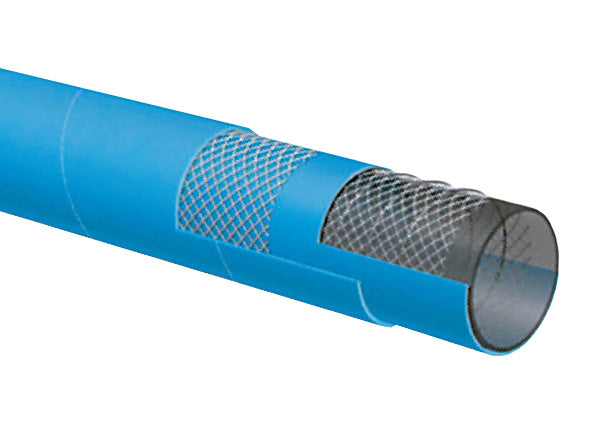

T509OE400X100 Alfagomma by Kuriyama | T505OG Series | UHMWPE Acid / Chemical Suction & Discharge Hose | 4" ID | 4.65" OD | 240 PSI | Blue | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Suction and transfer service for a variety of chemicals and acids. Will handle 98% of existing chemicals. | ||
|---|---|---|---|
| Other Ratings: | Meets FDA Requirements. | Tube: | Transparent UHMWPE (Ultra High Molecular Weight Polyethylene). |
| Reinforcement: | Synthetic textile cords with flexible steel helix wire. | Cover: | Blue EPDM - abrasion and ozone resistant. |
| Service Temperature Range: | Normal recommended operating temperature is -22°F (-30°C) to +200°F (+93°C) | Coupling Suggestions: | Quick-Acting and combination nipples, preferably stainless steel, attached with bands. |
| Branding: | ALFAGOMMA - ITALY T509 16 BAR (240 PSI) - UHMWPE CHEMICAL - S & D (in orange letters) | ||
| Important: | IT IS ADVISABLE TO TEST THE TUBE MATERIAL UNDER ACTUAL SERVICE CONDITIONS PRIOR TO USE. NOTE: FOR MAXIMUM SERVICE LIFE, WE RECOMMEND THAT T509 HOSE BE FLUSHED OUT AFTER EVERY USE. | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T509OE075X100 | 3/4" | 19mm | 1.22" | 31mm | 240 PSI | 27 in Hg | 7-1/2" | 0.41 lbs/ft |
| T509OE100X100 | 1" | 25mm | 1.46" | 37mm | 240 PSI | 27 in Hg | 9" | 0.50 lbs/ft |
| T509OE125X100 | 1-1/4" | 32mm | 1.73" | 44mm | 240 PSI | 27 in Hg | 10-1/4" | 0.60 lbs/ft |
| T509OE150X100 | 1-1/2" | 38mm | 1.97" | 50mm | 240 PSI | 27 in Hg | 13-1/4" | 0.68 lbs/ft |
| T509OE200X100 | 2" | 51mm | 2.48" | 63mm | 240 PSI | 27 in Hg | 16-1/4" | 0.91 lbs/ft |
| T509OE250X100 | 2-1/2" | 63mm | 3.03" | 77mm | 240 PSI | 27 in Hg | 17-1/2" | 1.40 lbs/ft |
| T509OE300X100 | 3" | 76mm | 3.62" | 92mm | 240 PSI | 24 in Hg | 20-3/4" | 1.91 lbs/ft |
| T509OE400X100 | 4" | 102mm | 4.65" | 118mm | 240 PSI | 24 in Hg | 26-1/2" | 2.61 lbs/ft |
| T509OE600X100 | 6" | 152mm | 6.77" | 172mm | 240 PSI | 24 in Hg | 40" | 5.28 lbs/ft |
