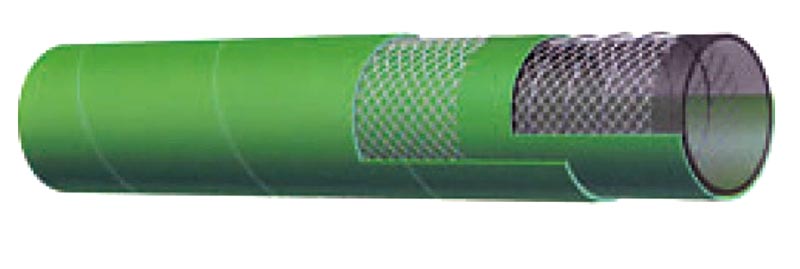

T505OG075X100 Alfagomma by Kuriyama | T505OG Series | XLPE Acid / Chemical Suction & Discharge Hose | 3/4" ID | 1.22" OD | 240 PSI | Green | 100ft Length
Kuriyama of America Inc.
Alfagomma | T505OG Series | XLPE Acid / Chemical Suction & Discharge Hose
For the suction and transfer service for a variety of chemicals and solvents.
Will handle 90% of existing chemicals.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $901.02 |
| 15–29 | $814.75 |
| 30+ | $718.90 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
240
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Suction and transfer service for a variety of chemicals and solvents. Will handle 90% of existing chemicals. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Transparent XLPE (cross-linked polyethylene). |
| Reinforcement: | High tensile textile cords with flexible steel helix wire. | Cover: | Green EPDM - abrasion and ozone resistant. |
| Service Temperature Range: | Normal recommended operating temperature is -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting and combination nipples, preferably stainless steel, attached with bands. |
| Branding: | ALFAGOMMA - ITALY T505 16 BAR (240 PSI) - XLPE CHEMICAL - S & D (in orange letters) | ||
| Important: | IT IS ADVISABLE TO TEST THE TUBE MATERIAL UNDER ACTUAL SERVICE CONDITIONS PRIOR TO USE. NOTE: FOR MAXIMUM SERVICE LIFE, WE RECOMMEND THAT T505 HOSE BE FLUSHED OUT AFTER EVERY USE. | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | |
| T505OG075X100 | 3/4" | 19mm | 1.22" | 31mm | 240 PSI | 27 in Hg | 7-1/2" | 0.46 lbs/ft |
| T505OG100X100 | 1" | 25mm | 1.46" | 37mm | 240 PSI | 27 in Hg | 9" | 0.56 lbs/ft |
| T505OG150X100 | 1-1/2" | 38mm | 1.97" | 50mm | 240 PSI | 27 in Hg | 13-1/4" | 0.76 lbs/ft |
| T505OG200X100 | 2" | 51mm | 2.48" | 63mm | 240 PSI | 27 in Hg | 16-1/4" | 1.00 lbs/ft |
| T505OG300X100 | 3" | 76mm | 3.62" | 92mm | 240 PSI | 24 in Hg | 20-3/4" | 1.83 lbs/ft |
| T505OG400X100 | 4" | 102mm | 4.65" | 118mm | 240 PSI | 24 in Hg | 26-1/2" | 2.50 lbs/ft |
