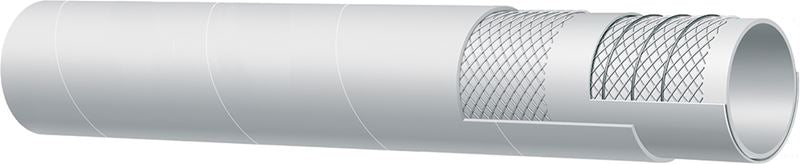

T400LL125X100 Alfagomma by Kuriyama | T400LL Evolution Series | FDA Multi Food Suction & Discharge Hose | 1-1/4" ID | 1.69" OD | 150 PSI | White | 100ft Length
Kuriyama of America Inc.
Alfagomma | T400LL Evolution Series | Multi Food Suction & Discharge Hose
For liquid food suction and discharge, including alcoholic beverages, milk transfer, animal fats and vegetable oils.
(Replaces T405LL Series Hose)
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,180.64 |
| 8–14 | $1,130.40 |
| 15+ | $1,004.80 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Application: | - Liquid food suction and discharge. - Alcoholic beverages - wine, beer & spirits up to 75% alcohol content and 150 proof. - Milk tanker collection & unloading-ideal for reel applications - Hot food-constant operations: liquid food up to 230° F (110° C), fat foods up to 248° F (120° C) - Fat foods-perfect for animal fats and any vegetable oils - Hose may be sterilized with 266° F (130° C) steam for 30 minutes or with 5% soda solution. |
||
|---|---|---|---|
| Other Ratings: | Compliant to FDA and 3A standards. | Tube: | White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free. |
| Reinforcement: | High tensile textile cords with embedded steel helix wire. | Cover: | White NBR/PVC abrasion, weather & ozone resistant. |
| Service Temperature Range: | Liquid foods: -22° F (-30° C) to +230° F (+110° C) Fat foods: -22° F (-30° C) to +248° F (+120° C |
Coupling Suggestions: | Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | AG -ITALY- 400 EVOLUTION 10 bar (150 psi) MULTI FOOD S&D 110 °C (230°F) FDA 3-A (food symbol) | ||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | lbs/ft | ||
| T400LL100X50 | T400LL100X100 | 1" | 25mm | 1.42" | 36mm | 150 PSI | 30 in Hg | 2" | 0.56 lbs/ft |
| - | T400LL125X100 | 1-1/4" | 32mm | 1.69" | 43mm | 150 PSI | 30 in Hg | 2-1/2" | 0.68 lbs/ft |
| T400LL150X50 | T400LL150X100 | 1-1/2" | 38mm | 1.93" | 49mm | 150 PSI | 30 in Hg | 3" | 0.79 lbs/ft |
| T400LL200X50 | T400LL200X100 | 2" | 51mm | 2.48" | 63mm | 150 PSI | 30 in Hg | 4" | 1.07 lbs/ft |
| - | T400LL250X100 | 2-1/2" | 63mm | 2.99" | 76mm | 150 PSI | 27 in Hg | 5" | 1.61 lbs/ft |
| T400LL300X50 | T400LL300X100 | 3" | 76mm | 3.50" | 89mm | 150 PSI | 27 in Hg | 6" | 1.94 lbs/ft |
| T400LL400X50 | T400LL400X100 | 4" | 102mm | 4.57" | 116mm | 150 PSI | 27 in Hg | 8" | 2.63 lbs/ft |
